KITZ Compact Electric Ball Valve

FEATURE

KITZ Valve EA Series của Nhật Bản là valve nhỏ gọn với độ bền xuất sắc và tuổi thọ dài, đã được bán chạy nhất trong hơn 50 năm.
Nhờ độ tin cậy cao với ít vấn đề sau khi lắp đặt, đã phát triển cùng với ngành công nghiệp thiết bị bán dẫn Hàn Quốc và chứng minh tính ổn định.

KELMO

 KITZ Model

EA200-UTE

10K Electric Stainless Steel Ball Valve

LINE UP

KITZ EA Series là electric ball valve compact với ren, cung cấp các tùy chọn tiện lợi. KELMO Motor là electric motor gốc của KITZ. Ở Hàn Quốc, điện áp AC110V, 220V được sử dụng nhiều. Motor có các tùy chọn terminal box / spring return / DC voltage / Built-in relay, valve được cung cấp với vật liệu stainless steel và bronze dưới dạng Short hoặc Long Neck type. Vui lòng tham khảo LINE UP bên dưới để biết chi tiết tùy chọn và thông số kỹ thuật.

  • Standard
    Drawing

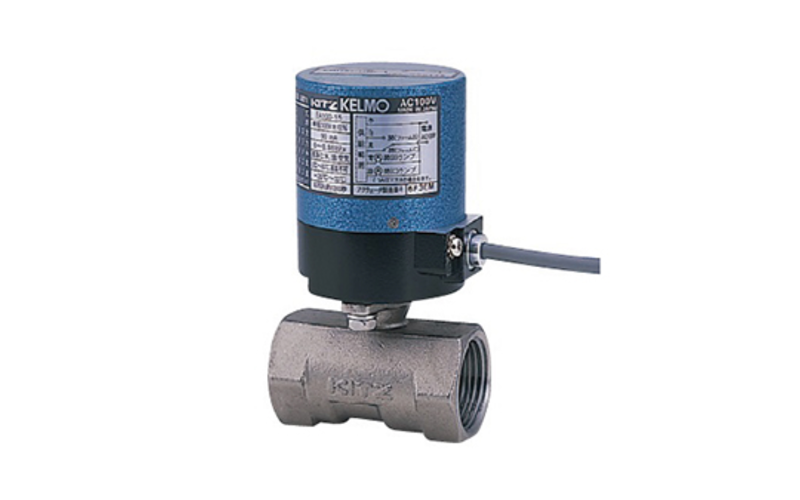

  • Model Name: EA200-UTE

  • Material:
    BODY - 316 Stainless Steel ( SCS14A)
    STEM - 316 Stainless Steel ( SUS316)+Cr PLATED
    BALL - 316 Stainless Steel ( SUS316)
    SEAT - Teflon ( PTFE)
    O-RING - Fluorocarbon Rubber ( FKM)
    Type:    1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
    Rating:   JIS 10K Screwed Ends (PT)
    Actuator:   KITZ KELMO MOTOR
    Condition:   Max. 100°C / 10Kgf
    Size:   1/4"(8mm) ~ 2"(50mm)
  • 10K Electric ON-OFF Stainless Steel Ball Valve
  • 3 WAY
    Drawing

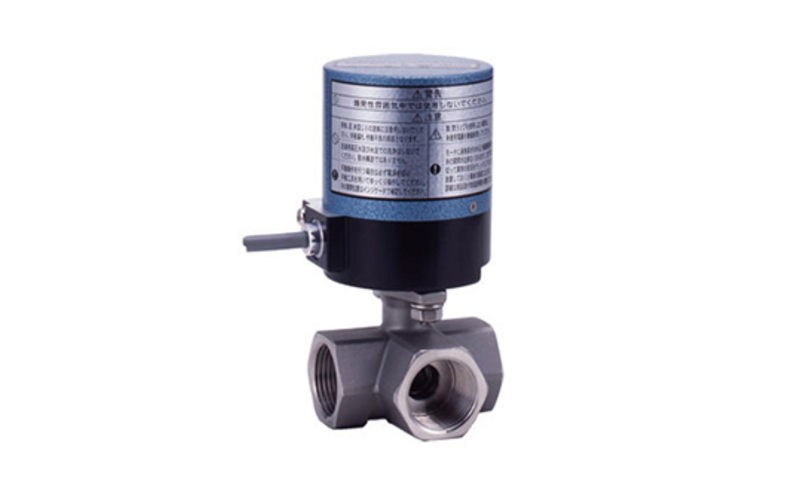

  • Model Name: EA200-UTNE

  • Material:
    BODY - 316 Stainless Steel ( SCS14A)
    STEM - 316 Stainless Steel ( SUS316)+Cr PLATED
    BALL - 316 Stainless Steel ( SUS316)
    SEAT - Teflon ( PTFE)
    O-RING - Fluorocarbon Rubber ( FKM)
    Type: 1-PIECE BODY, REDUCED BORE, FLOATING 3-WAY BALL
    Rating: JIS 10K Screwed Ends (PT)
    Actuator: KITZ ELECTRIC MOTOR
    Condition:   Max. 100°C / 10Kgf
    Size: 1/4"(8mm) ~ 2"(50mm)
  • 10K Electric ON-OFF Stainless Steel 3WAY Ball Valve
  • Full Bore
    Drawing
  • Model Name: EA200-UTFE
  • Material:
    BODY - 316 Stainless Steel ( SCS14A)
    STEM - 316 Stainless Steel ( SUS316)+Cr PLATED
    BALL - 316 Stainless Steel ( SUS316)
    SEAT - Teflon ( PTFE)
    O-RING - Fluorocarbon Rubber ( FKM)
    Type: 1-PIECE BODY, FULL BORE, FLOATING 2-WAY BALL
    Rating: JIS 10K Screwed Ends (PT)
    Actuator: KITZ KELMO MOTOR
    Condition:   Max. 100°C / 10Kgf
    Size: 1/2"(15mm) ~ 11/2"(40mm)
  • 10K Electric ON-OFF Stainless Steel Full bore Ball Valve
  • High Temperature
    Drawing

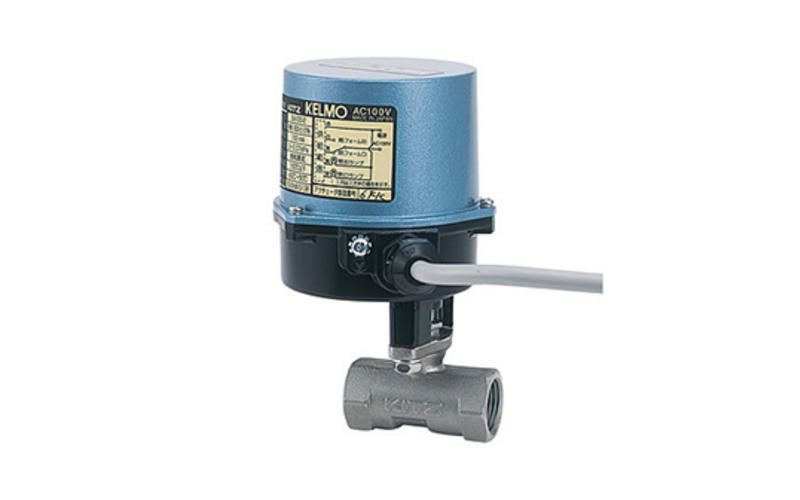

  • Model Name: EA200-UTGE
  • Material:
    BODY - 316 Stainless Steel ( SCS14A)
    STEM - 316 Stainless Steel ( SUS316)+Cr PLATED
    BALL - 316 Stainless Steel ( SUS316)
    SEAT - REINFORCED PTFE
    PACKING - FLEXIBLE GRAPHITE + PTFE BRAIDED
    Type: 1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
    Rating: JIS 10K Screwed Ends (PT)
    Actuator: KITZ KELMO MOTOR
    Condition:   Max. 150°C / 10Kgf
    Size: 1/4"(8mm) ~ 1"(25mm)
  • 10K Electric ON-OFF Stainless Steel High Temperature Ball Valve
  • Long neck / Bronze
    Drawing

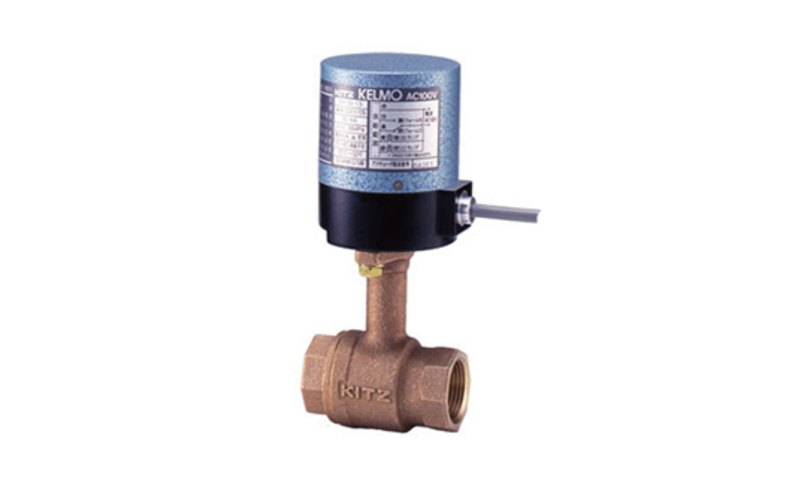

  • Model Name: EA200-TLE
  • Material:
    BODY - Aluminum Bronze(Al Bronze, CAC406)
    BODY CAP - Aluminum Bronze(Al Bronze, CAC406)
    STEM - High Strength Bronze( C6782BD)
    BALL - Special Brass( Special Brass)
    SEAT - Teflon ( PTFE)
    O-RING - Fluorocarbon Rubber ( FKM)
    Type: 1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
    Rating - JIS 10K Screwed Ends (PT)
    Actuator - PNEUMATIC DOUBLE ACTING
    Condition:   Max. 100°C / 10Kgf
    Size: 1/2"(15mm) ~ 2"(50mm)
  • 10K Electric ON-OFF Stainless Steel Long neck Ball Valve
  • Bronze
    Drawing

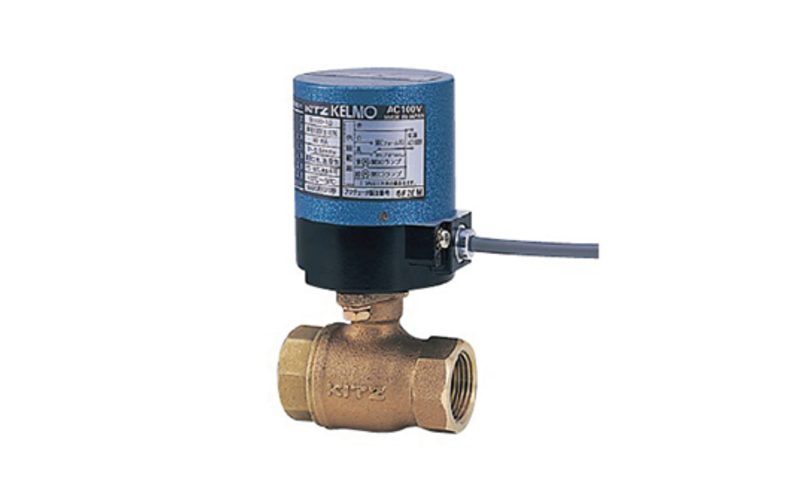

  • Model Name: EA200-TE
  • Material:
    BODY - Aluminum Bronze(Al Bronze, CAC406)
    BODY CAP - Aluminum Brass(Al Brass, C3771BE)
    STEM - High Strength Bronze( C6782BD)
    BALL - Special Brass( Special Brass)
    SEAT - Teflon ( PTFE)
    O-RING - Fluorocarbon Rubber ( FKM)
    Type: 1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
    Rating - JIS 10K Screwed Ends (PT)
    Actuator - KITZ KELMO MOTOR
    Condition:   Max. 100°C / 10Kgf
    Size: 3/8"(10mm) ~ 2"(50mm)
  • 10K Electric ON-OFF Stainless Steel Ball Valve
  • Bronze / 3WAY
    Drawing

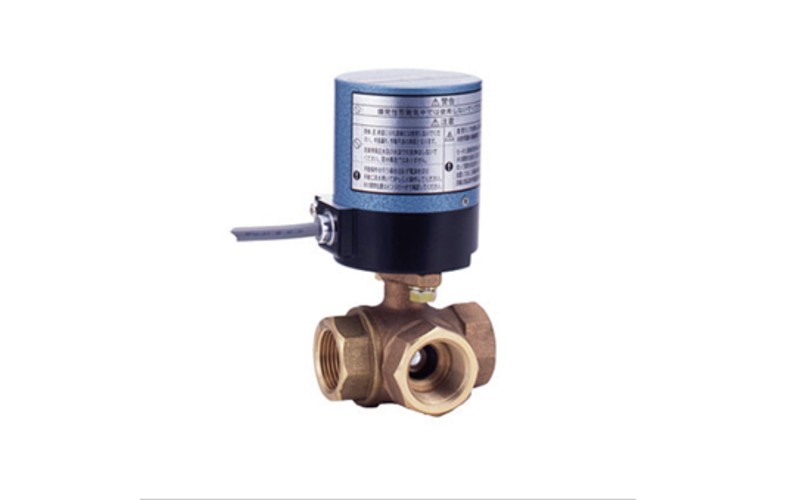

  • Model Name: EA200-TNE
  • Material:
    BODY - Aluminum Bronze(Al Bronze, CAC406)
    BODY CAP - Aluminum Brass(Al Brass, C3771BE)
    STEM - High Strength Bronze( C6782BD)
    BALL - Special Brass( Special Brass)
    SEAT - Teflon ( PTFE)
    O-RING - Fluorocarbon Rubber ( FKM)
    Type: 1-PIECE BODY, REDUCED BORE, FLOATING 3-WAY BALL
    Rating - JIS 10K Screwed Ends (PT)
    Actuator - KITZ KELMO MOTOR
    Condition:   Max. 100°C / 10Kgf
    Size: 1/4"(8mm) ~ 2"(50mm)
  • 10K Electric ON-OFF Stainless Steel Ball Valve
  • Bronze /Full Bore
    Drawing

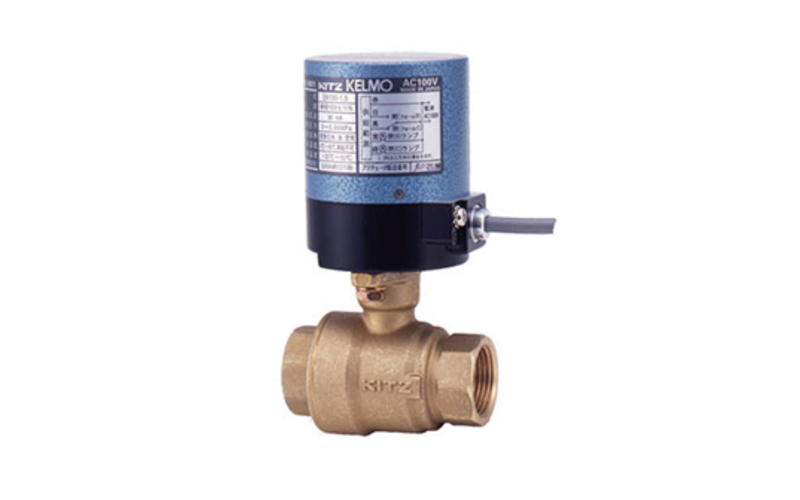

  • Model Name: EA200-TFE
  • Material:
    BODY - Aluminum Bronze(Al Bronze, CAC406)
    BODY CAP - Aluminum Brass(Al Brass, C3771BE)
    STEM - High Strength Bronze( C6782BD)
    BALL - Special Brass( Special Brass)
    SEAT - Teflon ( PTFE)
    O-RING - Fluorocarbon Rubber ( FKM)
    Type: 1-PIECE BODY, FULL BORE, FLOATING 2-WAY BALL
    Rating - JIS 10K Screwed Ends (PT)
    Actuator - KITZ KELMO MOTOR
    Condition:   Max. 100°C / 10Kgf
    Size: 1/2"(15mm) ~ 11/2"(40mm)
  • 10K Electric ON-OFF Bronze Full bore Ball Valve
  • Single Acting(Spring return)
    Drawing

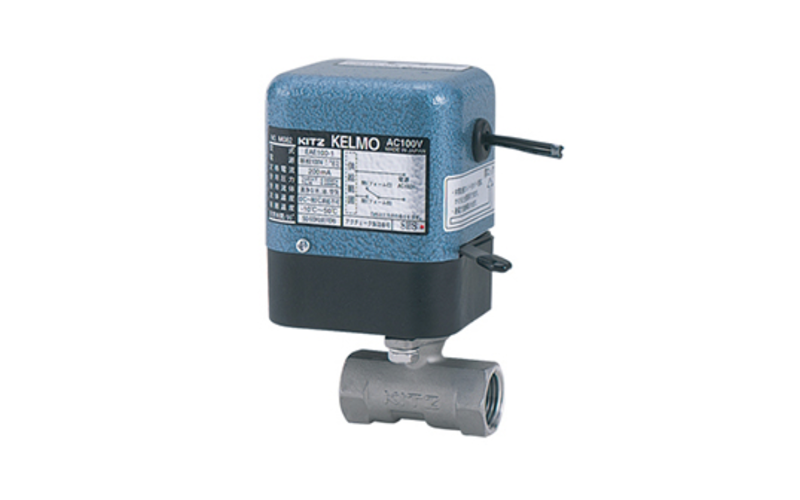

  • Model Name: EAE200-UTE
  • Material:
    BODY - 316 Stainless Steel ( SCS14A)
    STEM - 316 Stainless Steel ( SUS316)+Cr PLATED
    BALL - 316 Stainless Steel ( SUS316)
    SEAT - Teflon ( PTFE)
    O-RING - Fluorocarbon Rubber ( FKM)
    Type: 1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
    Rating: JIS 10K Screwed Ends (PT)
    Actuator: KITZ KELMO MOTOR(Spring return)
    Condition:   Max. 100°C / 10Kgf
    Size: 1/4"(8mm) ~ 1"(25mm)
  • 10K Electric Spring return ON-OFF Stainless Steel Ball Valve
  • Single Acting / Bronze
    Drawing

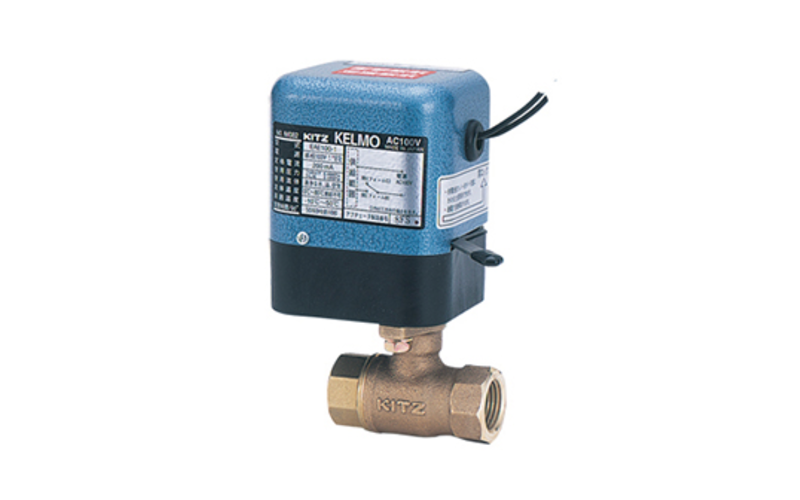

  • Model Name: EAE200-TE
  • Material:
    BODY - Aluminum Bronze(Al Bronze, CAC406)
    BODY CAP - Aluminum Brass(Al Brass, C3771BE)
    STEM - High Strength Bronze( C6782BD)
    BALL - Special Brass( Special Brass)
    SEAT - Teflon ( PTFE)
    O-RING - Fluorocarbon Rubber ( FKM)
    Type: 1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
    Rating - JIS 10K Screwed Ends (PT)
    Actuator - KITZ KELMO MOTOR(Spring return)
    Condition:   Max. 100°C / 10Kgf
    Size: 3/8"(10mm) ~ 1"(25mm)
  • 10K Electric(Spring return) ON-OFF Stainless Steel Ball Valve
  • Single Acting / 3Way / Bronze
    Drawing

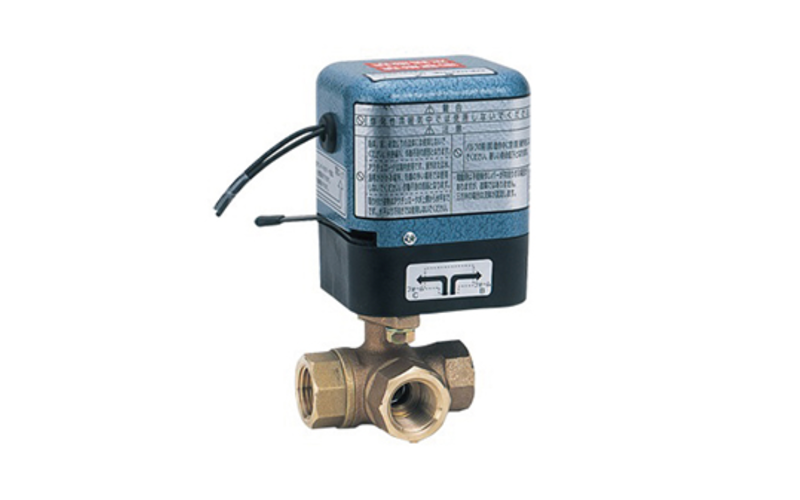

  • Model Name: EAE200-TNE
  • Material:
    BODY - Aluminum Bronze(Al Bronze, CAC406)
    BODY CAP - Aluminum Brass(Al Brass, C3771BE)
    STEM - High Strength Bronze( C6782BD)
    BALL - Special Brass( Special Brass)
    SEAT - Teflon ( PTFE)
    O-RING - Fluorocarbon Rubber ( FKM)
    Type: 1-PIECE BODY, REDUCED BORE, FLOATING 3-WAY BALL
    Rating - JIS 10K Screwed Ends (PT)
    Actuator - KITZ KELMO MOTOR(Spring return)
    Condition:   Max. 100°C / 10Kgf
    Size: 1/4"(8mm) ~ 1"(25mm)
  • 10K Electric(Spring return) ON-OFF Stainless Steel 3Way Ball Valve

P-T RATING

Biểu đồ này thể hiện xếp hạng áp suất-nhiệt độ (PT) của các loại valve khác nhau với gioăng PTFE. Biểu đồ thể hiện áp suất tối đa mà mỗi model valve có thể chịu được ở nhiệt độ cụ thể, chủ yếu dựa trên hiệu suất khi xử lý nước, dầu, khí (trạng thái không đóng băng).

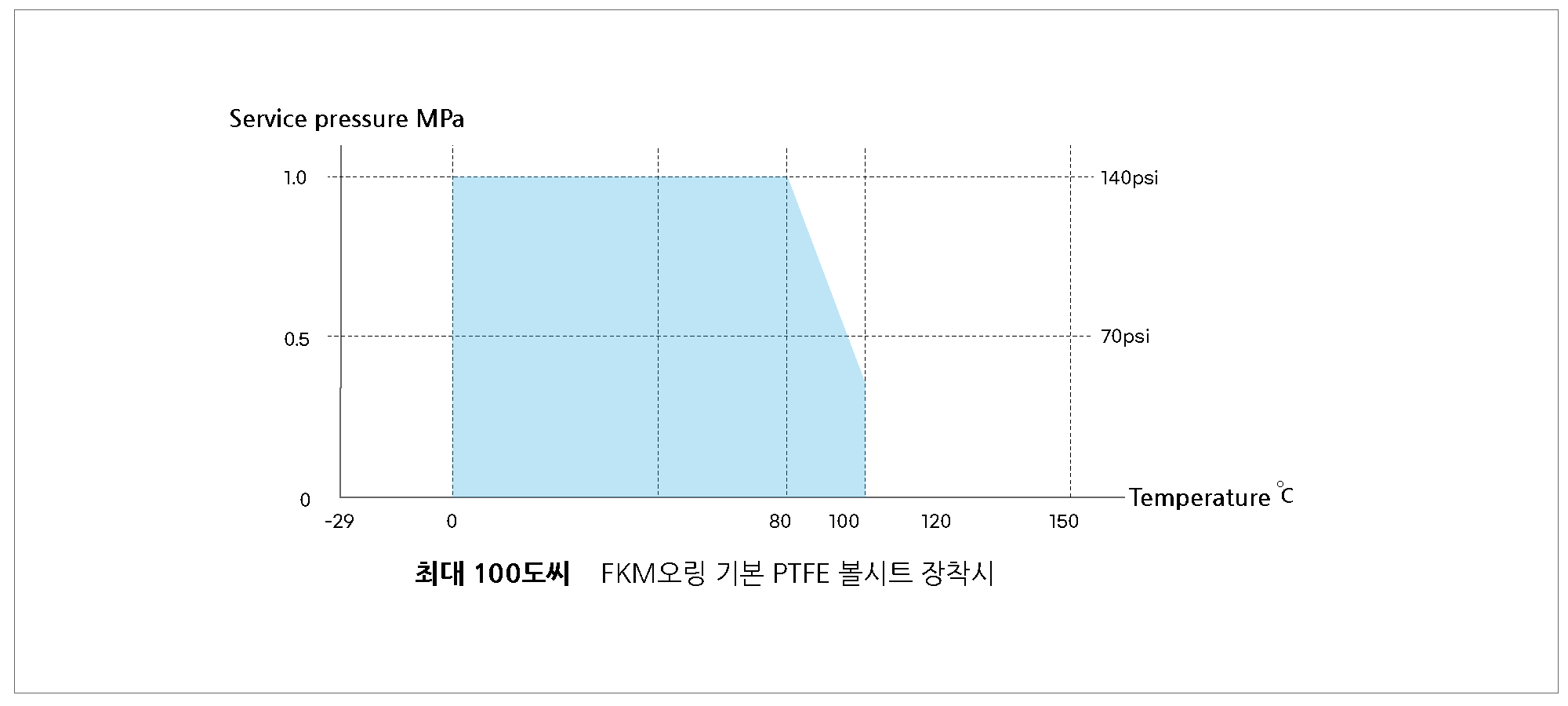

1. Đối với bộ phận làm kín tiêu chuẩn

PT-STD

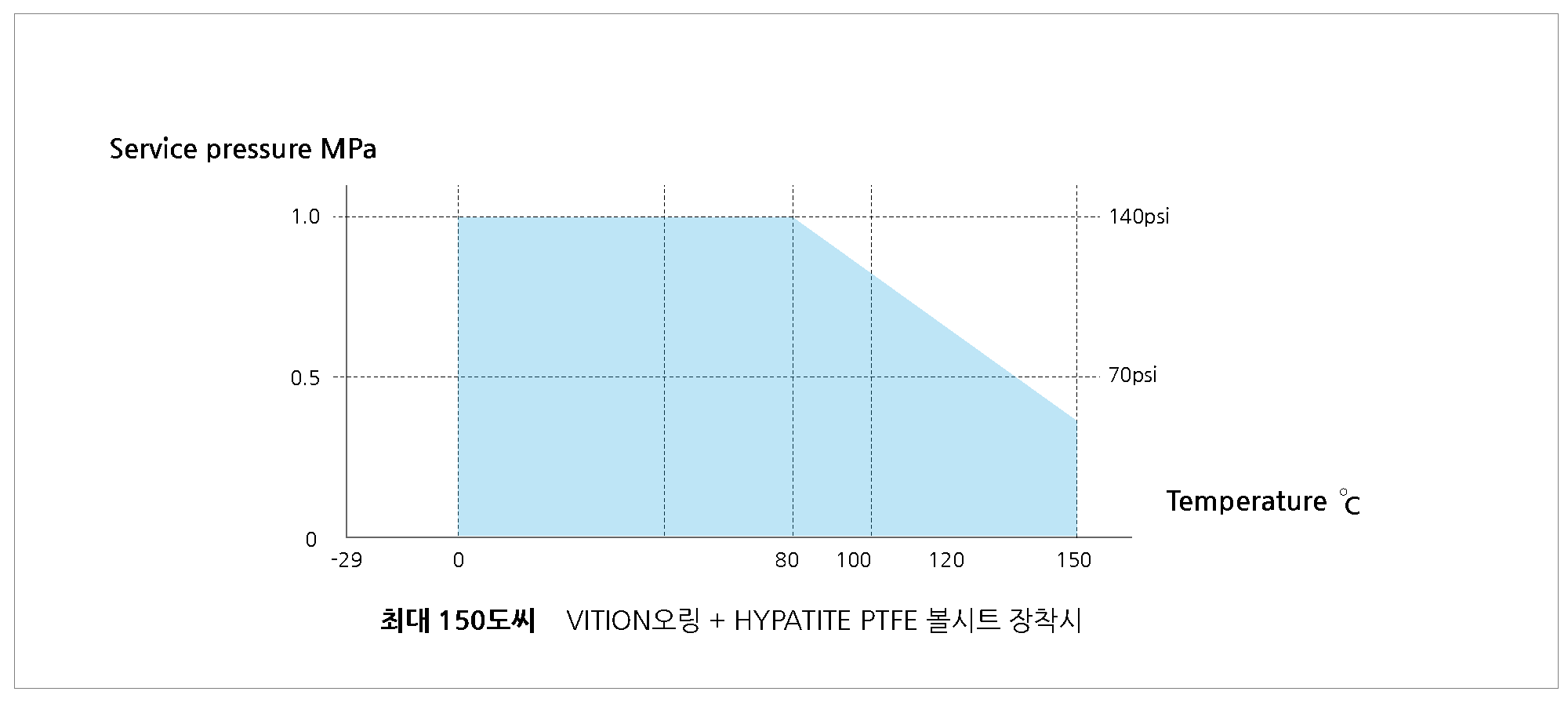

2. Đối với bộ phận làm kín đặc biệt

PT-SPE

Lưu ý

Các giá trị xếp hạng P-T trên đây dành cho tên model valve TE TFE TLE TNE TUE TLUE UTE UTFE 5/10UTWE và chất lỏng là nước, dầu, khí (trạng thái không đóng băng), vui lòng lưu ý.
