Strainer

FEATURE

Strainers are named according to their structural shape, and cast strainers are generally used in medium and low pressure gas or liquid lines, and are applied to various industrial processes that require corrosion resistance and wear resistance. This device is used for fluids that may contain relatively large amounts of solid particles and is suitable for applications that require periodic cleaning or maintenance. Solid particles accumulated on the screen can be discharged through a blowdown valve installed on the drain port, and some models are designed to allow screen cleaning or replacement without blocking fluid flow, maintaining process continuity.

Cast strainers are used in medium and low pressure gas or liquid lines and are suitable for industrial processes that require corrosion resistance and wear resistance. They are used for fluids with many solid particles and can be cleaned through blowdown valves without separating the screen. Some models allow maintenance without interrupting the process flow.

ㄴ

FLOTEC

STRAINER

CUSTOMIZING

150(JIS 10K) 300(JIS 20K)/ 2"~18" / End conn. RF, FF, BW,RTJ,TG /A216-WCB/A217-WC6,AWC9,C5,A351-CF8,CF8M,CF3,CF3M/A352-LCB

LINE UP

150(JIS 10K) 300(JIS 20K), supporting various specifications up to 2"~18", with multiple end types such as RF/FF, BW, RTJ, TG. BB and PSB structures provide excellent reliability and durability, and are manufactured with various materials such as A216-WCB, A217-WC6, AWC9, C5, A351-CF8 series, A352-LCB, applicable to a wide range of industries.

150(JIS 10K) 300(JIS 20K), supporting sizes 2"~18", with various end types and materials (A216-WCB, CF8 series, etc.) applicable across industries.

Capacity
CLASS
150(JIS 10K) 300(JIS 20K)
Size
2"~18"
End Connection
RF / FF / BW / RTJ / TG
Feature
BC(Bolted cap), PSC(Pressure seal cap)
Material
A216-WCB/A217-WC6,AWC9,C5,A351-CF8,CF8M,CF3,CF3M/A352-LCB, ETC
▼ Material Description -- Reference
A216-WCB
Carbon steel cast, widely used for general industrial valves for medium and low temperature service. Usable up to about 425°C.
A217-WC6
Chromium-molybdenum alloy steel suitable for high temperature and high pressure. Usable up to about 593°C.
A217-WC9
Higher chromium content than WC6, excellent resistance to high temperature oxidation and corrosion. Usable up to about 593°C.
A217-C5
5% chromium-0.5% molybdenum alloy steel suitable for high temperature, high pressure, and highly corrosive environments. Usable up to about 650°C.
A351-CF8
304 series stainless steel cast, excellent corrosion and heat resistance. Usable up to about 316°C.
A351-CF8M
316 series stainless steel cast, excellent corrosion resistance even in chloride ion environments. Usable up to about 316°C.
A351-CF3
304L series low carbon stainless steel cast, excellent weldability and corrosion resistance. Usable up to about 316°C.
A351-CF3M
316L series low carbon stainless steel cast, excellent weldability and outstanding corrosion resistance. Usable up to about 316°C.
A352-LCB
Low temperature carbon steel cast, usable down to -46°C. Used for cryogenic valves.

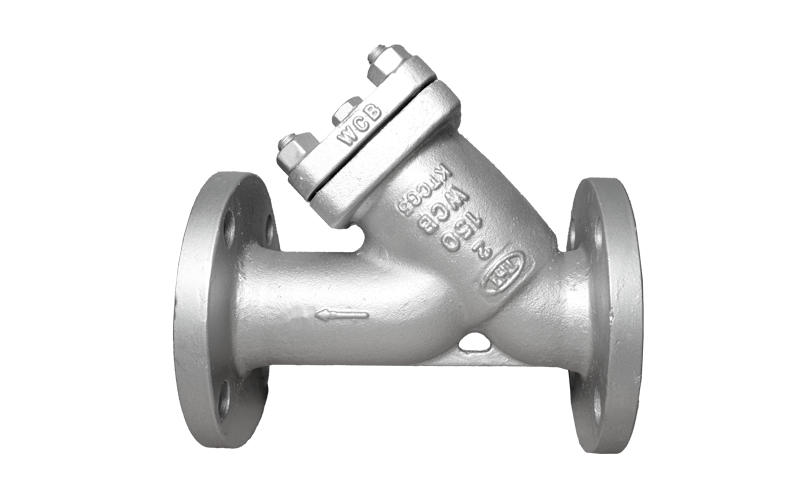

  • WCB
    Drawing
    • MODEL 150SCF
    • TYPE Strainer
    • CLASS ANSI 150
    • MATERIAL A216-WCB
    • CONN. RF
    • FEATURE Bolted cap
    • SIZE2"(50mm) ~ 16"(400)

    Cast ANSI 150 Carbon Steel Strainer

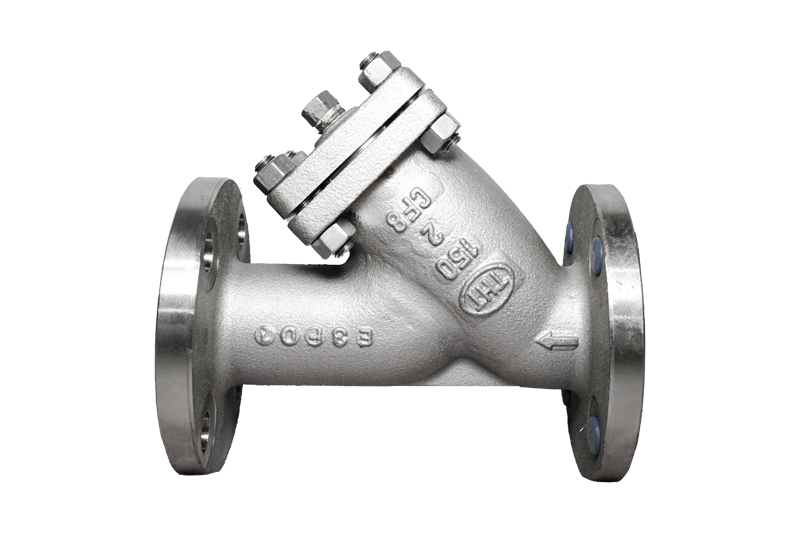

  • CF8
    • MODEL 150SUF
    • TYPE Strainer
    • CLASS ANSI 150
    • MATERIAL A351-CF8
    • CONN. RF
    • FEATURE Bolted cap
    • SIZE2"(50mm) ~ 16"(400)

    Cast ANSI 150 Stainless Steel Strainer
