KITZ Compact Small Automatic Ball Valve
FEATURE
LINE UP
KITZ Compact C-Series provides various types of valves and actuator options according to usage. We offer Dual Acting and SPRING RETURN (Single Acting) actuators, as well as stainless steel and bronze material valves (body), and 3-Way valves.
-

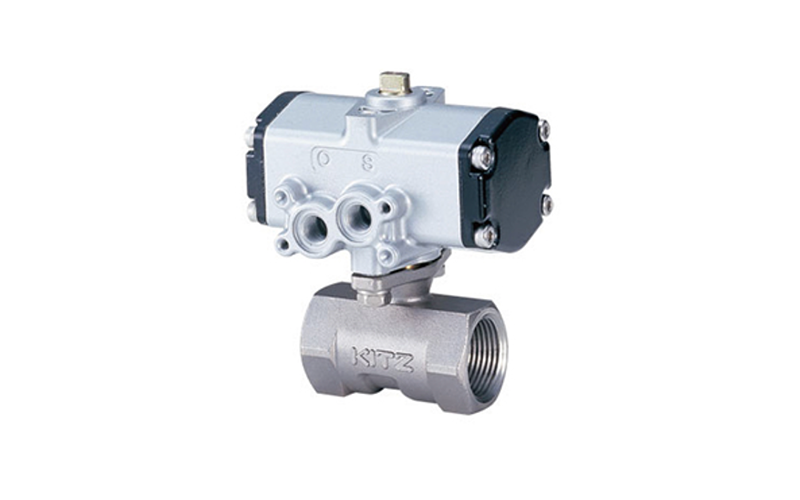

Standard -

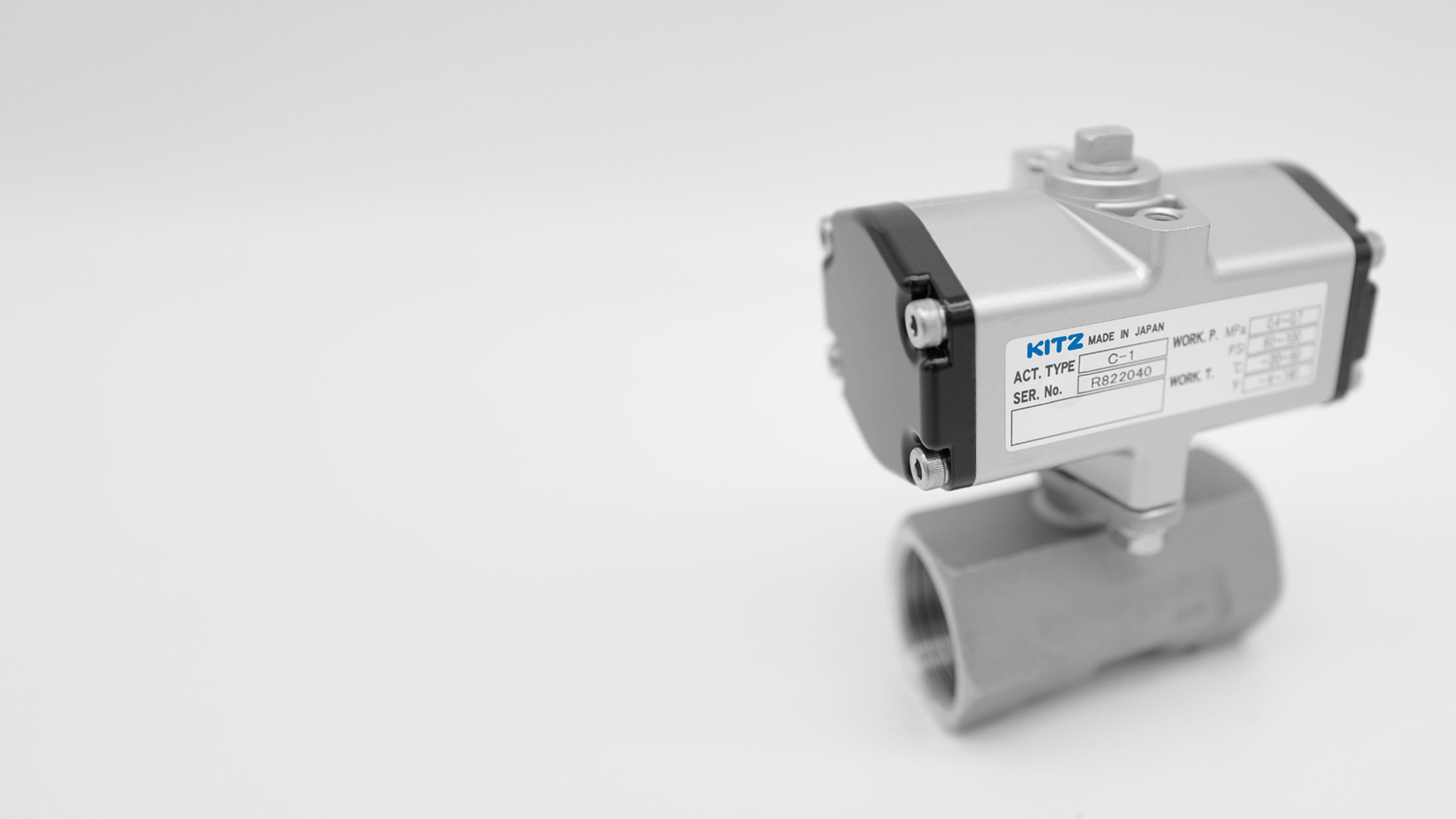

Model : C-UTE
- Material :
BODY - 316 Stainless Steel ( SCS14A)
STEM - 316 Stainless Steel ( SUS316)+Cr PLATED
BALL - 316 Stainless Steel ( SUS316)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
Rating : JIS 10K SCREWED ENDS (PT)
Actuator : PNEUMATIC DOUBLE ACTING
Operating Condition : Max. 100°C / 10Kgf
Size : 1/4"(8mm) ~ 2"(50mm)
- 10K Pneumatic ON-OFF Stainless Steel Ball Valve
-

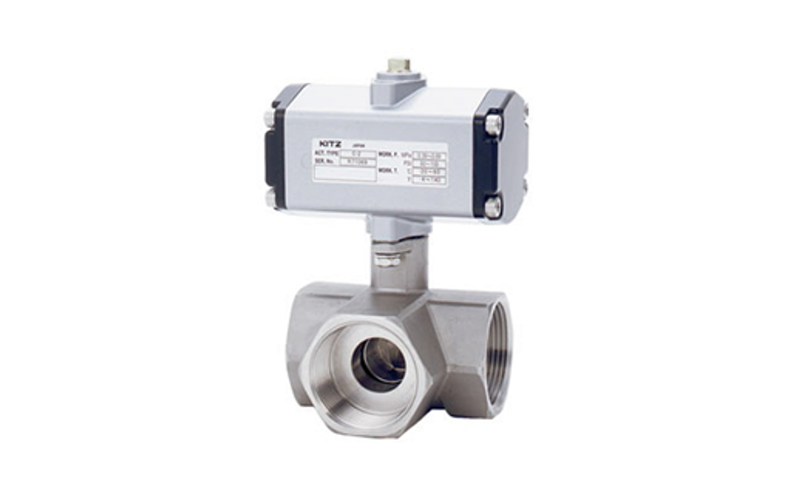

3 WAY -
Model : C-UTNE
- Material :
BODY - 316 Stainless Steel ( SCS14A)
STEM - 316 Stainless Steel ( SUS316)+Cr PLATED
BALL - 316 Stainless Steel ( SUS316)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 1-PIECE BODY, REDUCED BORE, FLOATING 3-WAY BALL
Rating : JIS 10K SCREWED ENDS (PT)
Actuator : PNEUMATIC DOUBLE ACTING
Operating Condition : Max. 100°C / 10Kgf
Size : 1/4"(8mm) ~ 2"(50mm) -
10K Pneumatic ON-OFF Stainless Steel 3-Way Ball Valve
-

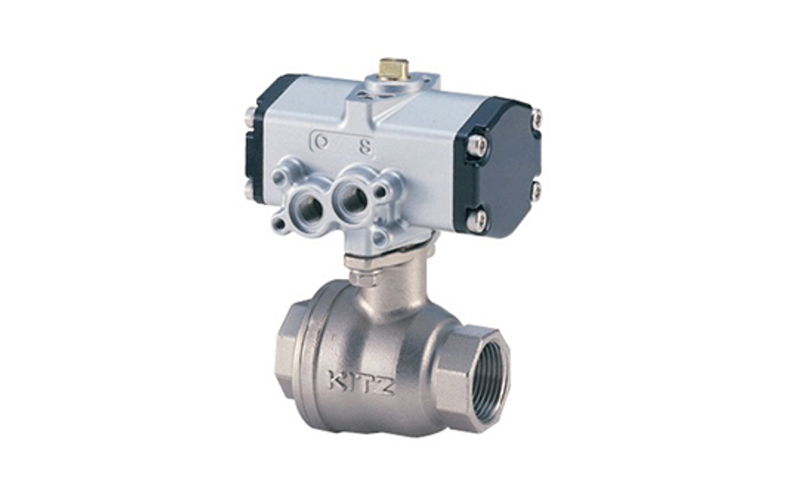

Full Bore -
Model : C-UTFE
- Material :
BODY - 316 Stainless Steel ( SCS14A)
STEM - 316 Stainless Steel ( SUS316)+Cr PLATED
BALL - 316 Stainless Steel ( SUS316)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 1-PIECE BODY, FULL BORE, FLOATING 2-WAY BALL
Rating : JIS 10K SCREWED ENDS (PT)
Actuator : PNEUMATIC DOUBLE ACTING
Operating Condition : Max. 100°C / 10Kgf
Size : 1/2"(15mm) ~ 11/2"(40mm) - 10K Pneumatic ON-OFF Stainless Steel Full bore Ball Valve
-

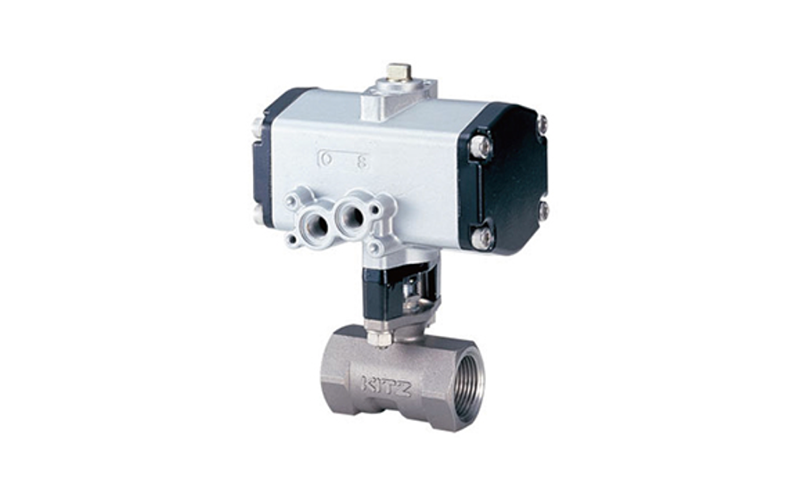

High Temperature -
Model : C-UTGE
- Material :
BODY - 316 Stainless Steel ( SCS14A)
STEM - 316 Stainless Steel ( SUS316)+Cr PLATED
BALL - 316 Stainless Steel ( SUS316)
SEAT - REINFORCED PTFE
PACKING - FLEXIBLE GRAPHITE + PTFE BRAIDED
Type : 1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
Rating : JIS 10K SCREWED ENDS (PT)
Actuator : PNEUMATIC DOUBLE ACTING
Operating Condition : Max. 150°C / 10Kgf
Size : 1/4"(8mm) ~ 1"(25mm) - 10K Pneumatic ON-OFF Stainless Steel High Temperature Ball Valve
-

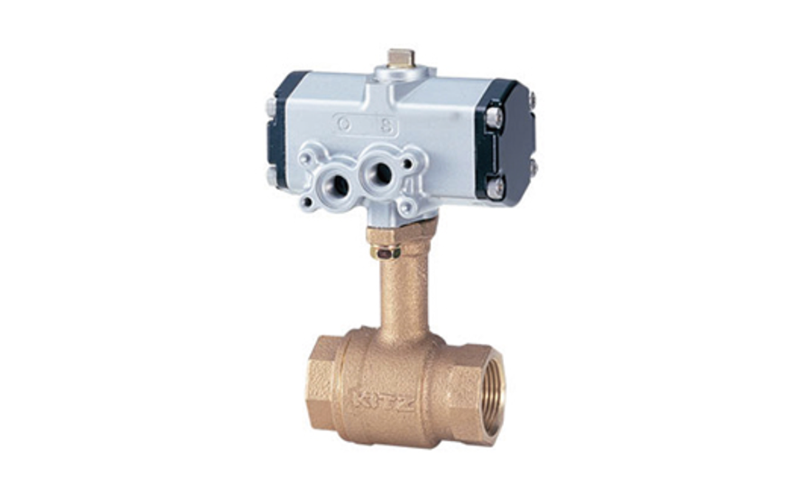

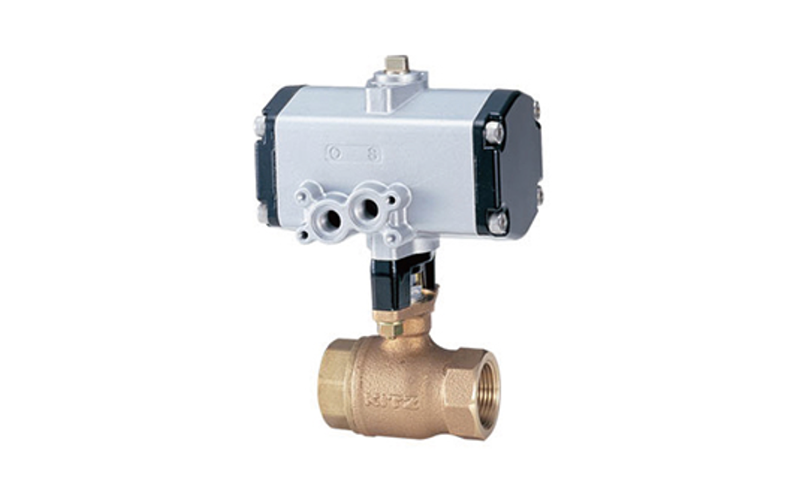

Long neck / Bronze -
Model : C-TLE
- Material :
BODY - Aluminum Bronze(Al Bronze, CAC406)
BODY CAP - Aluminum Bronze(Al Bronze, CAC406)
STEM - High Strength Brass( C6782BD)
BALL - Special Brass( Special Brass)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
Rating - JIS 10K SCREWED ENDS (PT)
Actuator - PNEUMATIC DOUBLE ACTING
Operating Condition : Max. 100°C / 10Kgf
Size : 1/2"(15mm) ~ 2"(50mm) - 10K Double Acting Pneumatic ON-OFF Stainless Steel Long neck Ball Valve
-

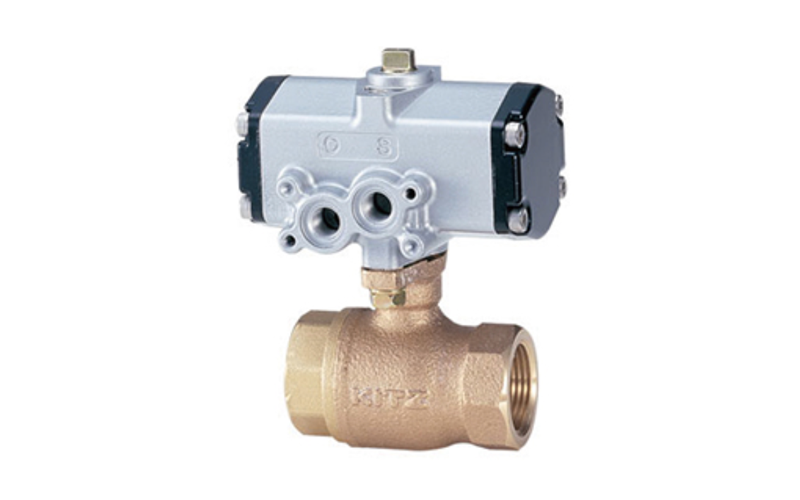

Bronze -
Model : C-TE
- Material :
BODY - Aluminum Bronze(Al Bronze, CAC406)
BODY CAP - Aluminum Brass(Al Brass, C3771BE)
STEM - High Strength Brass( C6782BD)
BALL - Special Brass( Special Brass)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
Rating - JIS 10K SCREWED ENDS (PT)
Actuator - PNEUMATIC DOUBLE ACTING
Operating Condition : Max. 100°C / 10Kgf
Size : 3/8"(10mm) ~ 2"(50mm) - 10K Pneumatic ON-OFF Stainless Steel Ball Valve
-

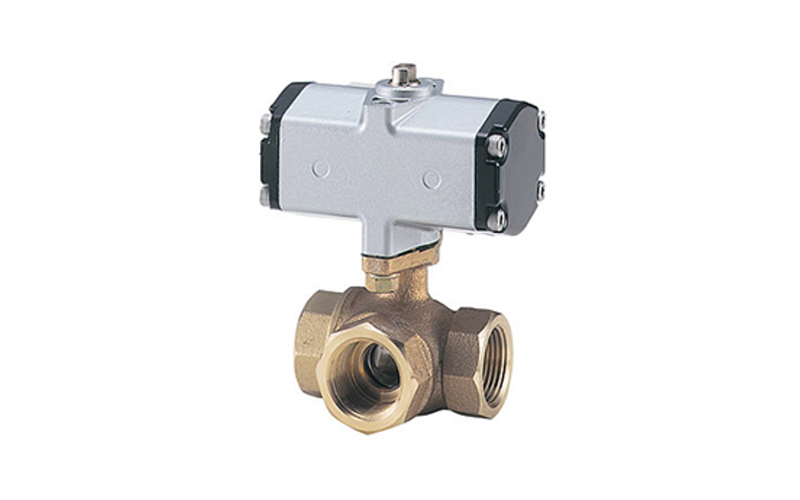

Bronze / 3WAY -
Model : C-TNE
- Material :
BODY - Aluminum Bronze(Al Bronze, CAC406)
BODY CAP - Aluminum Brass(Al Brass, C3771BE)
STEM - High Strength Brass( C6782BD)
BALL - Special Brass( Special Brass)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 1-PIECE BODY, REDUCED BORE, FLOATING 3-WAY BALL
Rating - JIS 10K SCREWED ENDS (PT)
Actuator - PNEUMATIC DOUBLE ACTING
Operating Condition : Max. 100°C / 10Kgf
Size : 1/4"(8mm) ~ 2"(50mm) - 10K Pneumatic ON-OFF Stainless Steel Ball Valve
-
Bronze / Full Bore -
Model : C-TFE
- Material :
BODY - Aluminum Bronze(Al Bronze, CAC406)
BODY CAP - Aluminum Brass(Al Brass, C3771BE)
STEM - High Strength Brass( C6782BD)
BALL - Special Brass( Special Brass)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 1-PIECE BODY, FULL BORE, FLOATING 2-WAY BALL
Rating - JIS 10K SCREWED ENDS (PT)
Actuator - PNEUMATIC DOUBLE ACTING
Operating Condition : Max. 100°C / 10Kgf
Size : 1/2"(15mm) ~ 11/2"(40mm) - 10K Pneumatic ON-OFF Stainless Steel Full bore Ball Valve
-
High Temperature / Full Bore -
Model : C-TGE
- Material :
BODY - Aluminum Bronze(Al Bronze, CAC406)
BODY CAP - Aluminum Brass(Al Brass, C3771BE)
STEM - High Strength Brass( C6782BD)
BALL - Special Brass( Special Brass)
SEAT - REINFORCED PTFE
PACKING - FLEXIBLE GRAPHITE + PTFE BRAIDED
Type : 1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
Rating : JIS 10K SCREWED ENDS (PT)
Actuator : PNEUMATIC DOUBLE ACTING
Operating Condition : Max. 150°C / 10Kgf
Size : 1/4"(8mm) ~ 1"(25mm) - 10K Pneumatic ON-OFF Stainless Steel Ball Valve
-

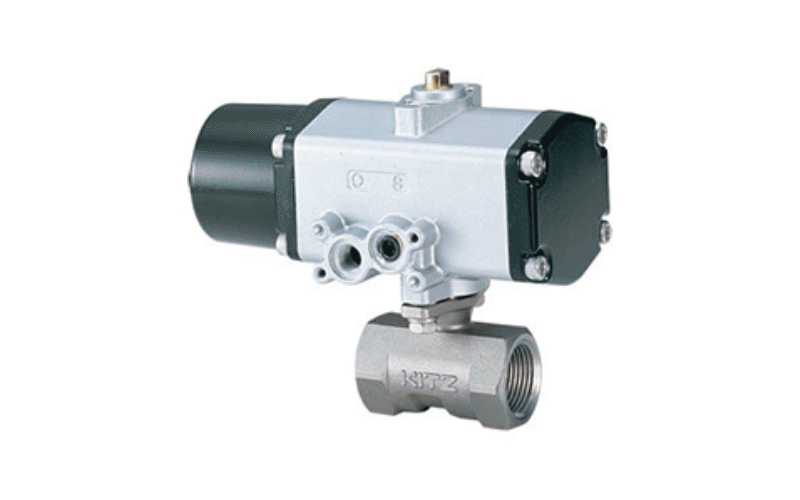

Single Acting (Spring return) -
Model : CS-UTE
- Material :
BODY - 316 Stainless Steel ( SCS14A)
STEM - 316 Stainless Steel ( SUS316)+Cr PLATED
BALL - 316 Stainless Steel ( SUS316)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
Rating : JIS 10K SCREWED ENDS (PT)
Actuator : PNEUMATIC SINGLE ACTING Operating Condition : Max. 100°C / 10Kgf Size : 1/4"(8mm) ~ 1"(25mm) - 10K Single Acting Pneumatic ON-OFF Stainless Steel Ball Valve
-
Single Acting / 3Way -

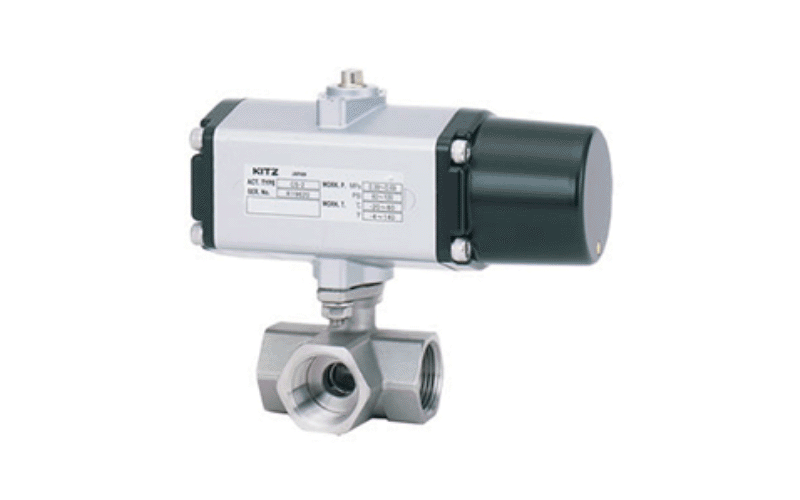

Model : CS-UTNE
- Material :
BODY - 316 Stainless Steel ( SCS14A)
STEM - 316 Stainless Steel ( SUS316)+Cr PLATED
BALL - 316 Stainless Steel ( SUS316)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 1-PIECE BODY, REDUCED BORE, FLOATING 3-WAY BALL
Rating : JIS 10K SCREWED ENDS (PT)
Actuator : PNEUMATIC DOUBLE ACTING Operating Condition : Max. 100°C / 10Kgf Size : 1/4"(8mm) ~ 1"(25mm) - 10K Single Acting Pneumatic ON-OFF Stainless Steel Ball Valve
-
Single Acting / Full bore -
Model : CS-UTFE
- Material :
BODY - 316 Stainless Steel ( SCS14A)
STEM - 316 Stainless Steel ( SUS316)+Cr PLATED
BALL - 316 Stainless Steel ( SUS316)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 1-PIECE BODY, FULL BORE, FLOATING 2-WAY BALL
Rating : JIS 10K SCREWED ENDS (PT)
Actuator : PNEUMATIC DOUBLE ACTING Operating Condition : Max. 100°C / 10Kgf Size : 2"(50mm) - 10K Single Acting Pneumatic ON-OFF Stainless Steel Ball Valve
-

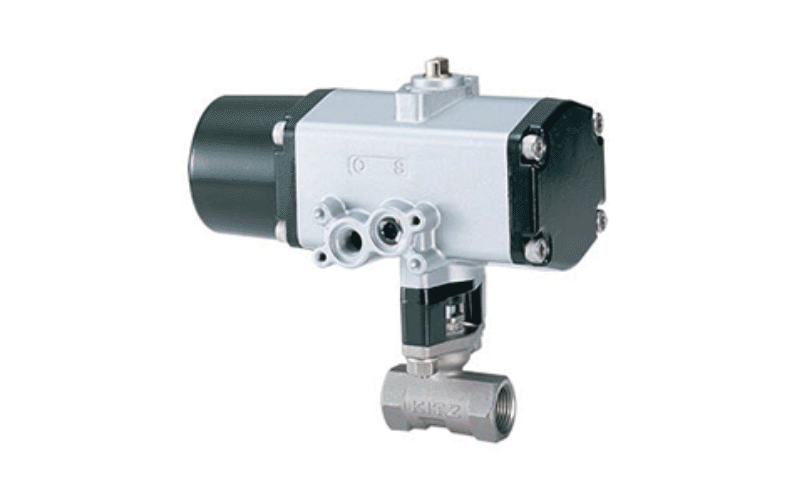

Single Acting / High Temperature -
Model : CS-UTGE
- Material :
BODY - 316 Stainless Steel ( SCS14A)
STEM - 316 Stainless Steel ( SUS316)+Cr PLATED
BALL - 316 Stainless Steel ( SUS316)
SEAT - REINFORCED PTFE
PACKING - FLEXIBLE GRAPHITE + PTFE BRAIDED
Type : 1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
Rating : JIS 10K SCREWED ENDS (PT) Actuator : PNEUMATIC DOUBLE ACTING Operating Condition : Max. 150°C / 10Kgf Size : 1/4"(8mm) ~ 3/8"(10mm) - 10K Single Acting Pneumatic ON-OFF Stainless Steel Ball Valve
-

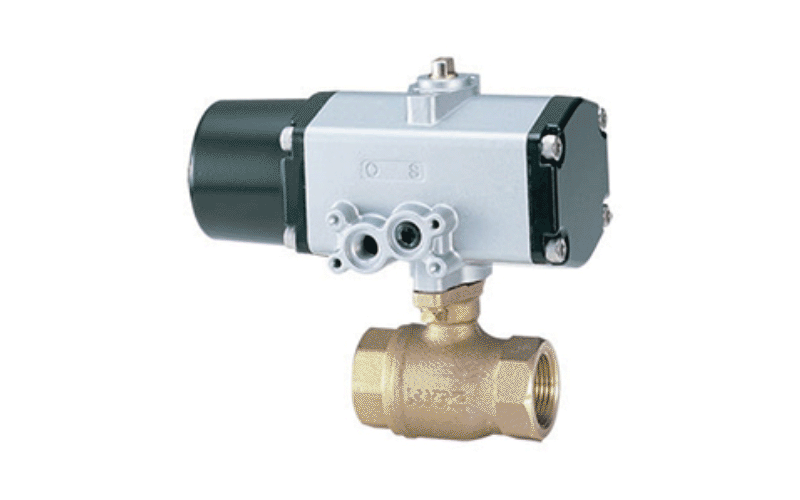

Single Acting / Bronze -
Model : CS-TE
- Material :
BODY - Aluminum Bronze(Al Bronze, CAC406)
BODY CAP - Aluminum Brass(Al Brass, C3771BE)
STEM - High Strength Brass( C6782BD)
BALL - Special Brass( Special Brass)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
Rating - JIS 10K SCREWED ENDS (PT)
Actuator - PNEUMATIC DOUBLE ACTING Operating Condition : Max. 100°C / 10Kgf Size : 3/8"(10mm) ~ 1"(25mm) - 10K Single Acting Pneumatic ON-OFF Stainless Steel Ball Valve
-

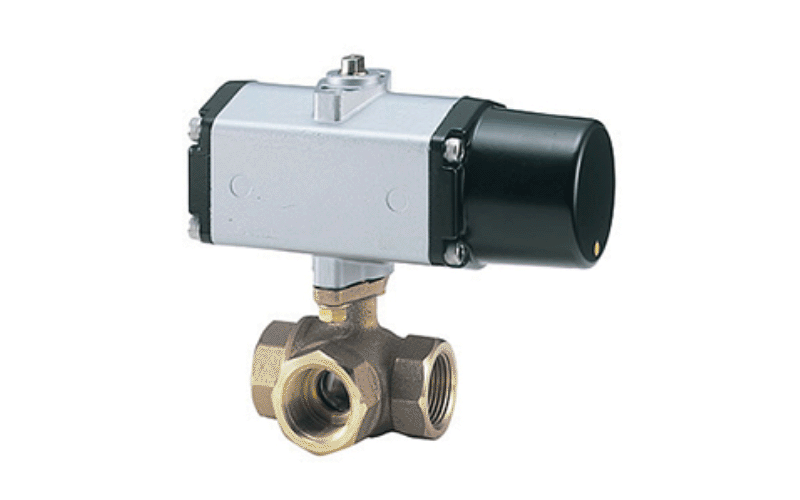

Single Acting / 3Way / Bronze -
Model : CS-TNE
- Material :
BODY - Aluminum Bronze(Al Bronze, CAC406)
BODY CAP - Aluminum Brass(Al Brass, C3771BE)
STEM - High Strength Brass( C6782BD)
BALL - Special Brass( Special Brass)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 1-PIECE BODY, REDUCED BORE, FLOATING 3-WAY BALL
Rating - JIS 10K SCREWED ENDS (PT)
Actuator - PNEUMATIC DOUBLE ACTING Operating Condition : Max. 100°C / 10Kgf Size : 1/4"(8mm) ~ 1"(25mm) - 10K Single Acting Pneumatic ON-OFF Stainless Steel Ball Valve
-

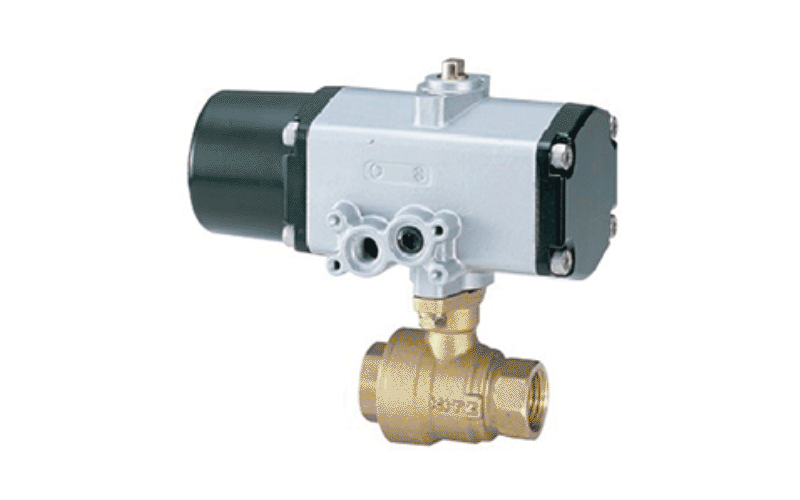

Single Acting / Full bore / Bronze -
Model : CS-TFE
- Material :
BODY - Aluminum Bronze(Al Bronze, CAC406)
BODY CAP - Aluminum Brass(Al Brass, C3771BE)
STEM - High Strength Brass( C6782BD)
BALL - Special Brass( Special Brass)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 1-PIECE BODY, FULL BORE, FLOATING 2-WAY BALL
Rating - JIS 10K SCREWED ENDS (PT)
Actuator - PNEUMATIC DOUBLE ACTING Operating Condition : Max. 100°C / 10Kgf Size : 1/2"(15mm) - 10K Single Acting Pneumatic ON-OFF Stainless Steel Ball Valve
-

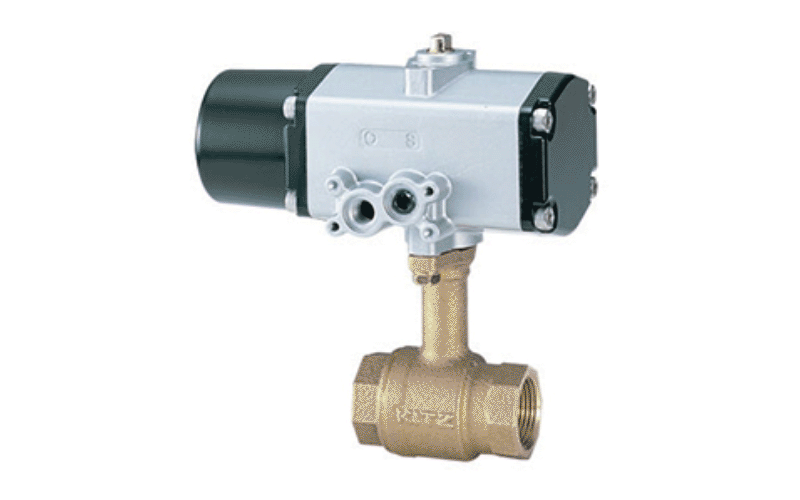

Long neck / Bronze -
Model : CS-TLE
- Material :
BODY - Aluminum Bronze(Al Bronze, CAC406)
BODY CAP - Aluminum Bronze(Al Bronze, CAC406)
STEM - High Strength Brass( C6782BD)
BALL - Special Brass( Special Brass)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 1-PIECE BODY, REDUCED BORE, FLOATING 2-WAY BALL
Rating - JIS 10K SCREWED ENDS (PT)
Actuator - PNEUMATIC DOUBLE ACTING Operating Condition : Max. 100°C / 10Kgf Size : 1/2"(15mm) ~ 1"(25mm) - 10K Double Acting Pneumatic ON-OFF Stainless Steel Long neck Ball Valve
-
3 Pieces body -

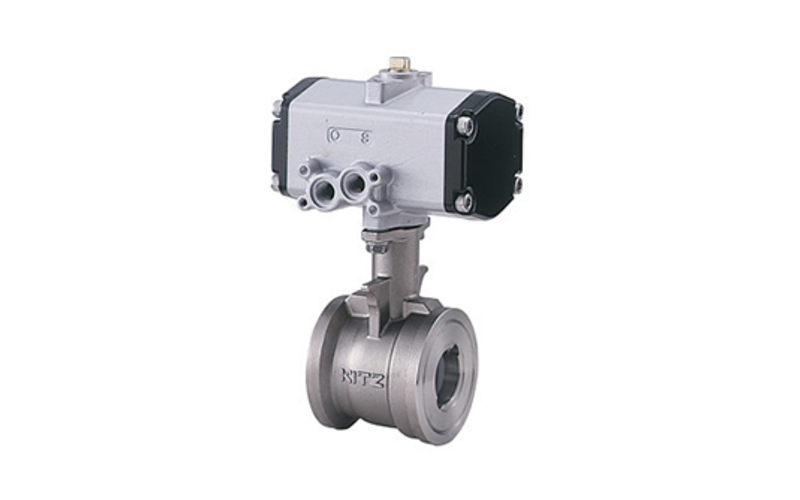

Model : C-5UTWE, C-10UTWE
- Material :
BODY - 304 Stainless Steel ( SCS13A)
STEM - 304 Stainless Steel ( SUS316)+Cr PLATED
BALL - 304 Stainless Steel ( SUS304)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 3-PIECES BODY, FULL BORE, FLOATING 3-WAY BALL
Rating : JIS 5K/10K SCREWED ENDS (PT)
Actuator : PNEUMATIC DOUBLE ACTING Operating Condition : Max. 100°C / 10Kgf Size : 3/8"(10mm) ~ 1"(25mm) - 5/10K Single Acting Pneumatic ON-OFF Stainless Steel Ball Valve
-

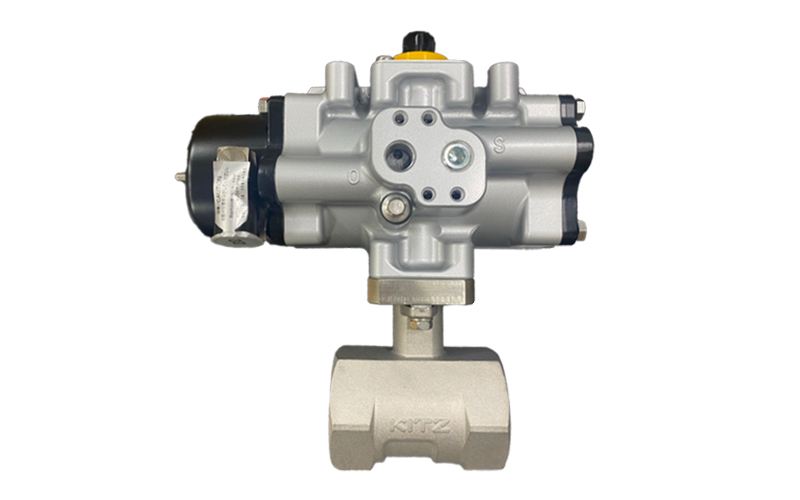

Big size single acting -
Model : FBS-UTE
- Material :
BODY - 316 Stainless Steel ( SCS14A)
STEM - 316 Stainless Steel ( SUS316)
BALL - 304 Stainless Steel ( SUS316)
SEAT - Teflon ( PTFE)
O-RING - Fluorine Rubber ( FKM)
Type : 2-PIECES BODY, REDUCED BORE, FLOATING 2-WAY BALL
Rating : JIS 5K/10K SCREWED ENDS (PT)
Actuator : PNEUMATIC DOUBLE ACTING Operating Condition : Max. 100°C / 10Kgf Size : 11/4"(32mm) ~ 2"(50mm) - 10K Single Acting Pneumatic ON-OFF Stainless Steel Ball Valve
P-T RATING
This graph shows the pressure-temperature (PT) ratings of various valves with PTFE seals. The graph shows the maximum pressure that each valve model can withstand at specific temperatures, based on its performance when handling water, oil, and non-frozen gases.
1. For standard sealing parts
2. For special sealing parts
Note
The P-T rating values below are for valve models ending in TE TFE TLE TNE TUE TLUE UTE 5/10UTWE and for fluids of water, oil, and non-frozen gases. Please note that these values are for reference only.
