Check Valve

FEATURE

Check Valve is an automatic valve that prevents backflow of fluid, typically operated by pressure changes or gravity. Swing Check Valve is installed in horizontal pipelines, with the disc moving vertically for quick opening and closing, and is also effective for pressure maintenance.

Check Valve is an automatic valve that prevents backflow. The Lift type is installed in horizontal pipelines for quick opening and closing, and is advantageous for pressure maintenance.

FLOTEC

CHECK

CUSTOMIZING

150(JIS 10K) 300(JIS 20K) 600(JIS 30K) 900/1500(JIS 63K) 2500/ 2"~30" / End conn. RF, FF, BW,RTJ,TG /A216-WCB/A217-WC6,AWC9,C5,A351-CF8,CF8M,CF3,CF3M/A352-LCB

LINE UP

Supports various specifications from ASME Class 150~2500, 2"~36", with multiple end types such as RF/FF, BW, RTJ, TG. Features BB and PSB structures for excellent reliability and durability, manufactured with various materials including A216-WCB, A217-WC6, AWC9, C5, A351-CF8 series, A352-LCB, and applied across a wide range of industries.

Supports ASME Class 150~2500, 2"~36" sizes, applied across industries with various end types and materials (A216-WCB, CF8 series, etc.).

Capacity
CLASS
150(JIS 10K) 300(JIS 20K) 600(JIS 30K) 900/1500(JIS 63K) 2500
Size
2"~36"
End Connection
RF / FF / BW / RTJ / TG
Feature
BC(Bolted cap), PSC(Pressure seal cap)
Material
A216-WCB/A217-WC6,AWC9,C5,A351-CF8,CF8M,CF3,CF3M/A352-LCB, ETC
▼ Material Description -- Reference
A216-WCB
Carbon Steel Cast widely used for general industrial valves in medium and low temperature applications. Maximum use temperature approximately 425°C.
A217-WC6
Chromium-molybdenum alloy steel suitable for high temperature and high pressure applications. Maximum use temperature approximately 593°C.
A217-WC9
Higher chromium content than WC6 with excellent high temperature oxidation and corrosion resistance. Maximum use temperature approximately 593°C.
A217-C5
5% chromium-0.5% molybdenum alloy steel suitable for high temperature, high pressure, and highly corrosive environments. Maximum use temperature approximately 650°C.
A351-CF8
304 series stainless steel cast with excellent corrosion resistance and heat resistance. Maximum use temperature approximately 316°C.
A351-CF8M
316 series stainless steel cast with excellent corrosion resistance even in chloride ion environments. Maximum use temperature approximately 316°C.
A351-CF3
304L series low carbon stainless steel cast with excellent weldability and corrosion resistance. Maximum use temperature approximately 316°C.
A351-CF3M
316L series low carbon stainless steel cast with excellent weldability and outstanding corrosion resistance. Maximum use temperature approximately 316°C.
A352-LCB
Low temperature carbon steel cast usable down to -46°C. Used for cryogenic valves.

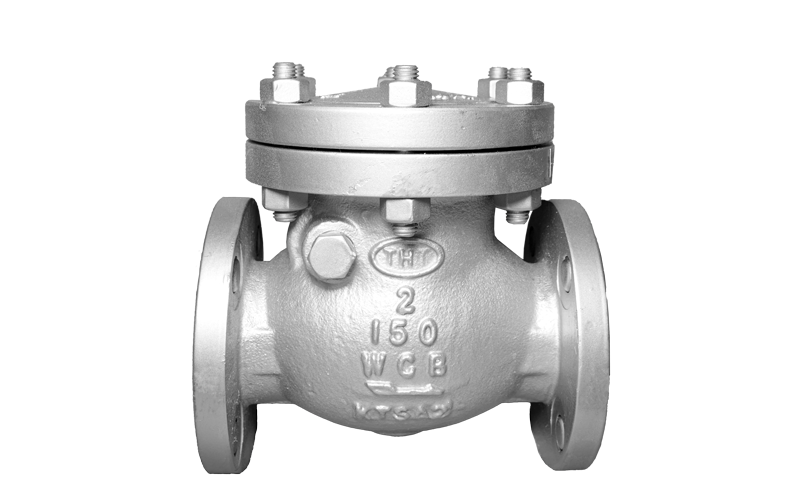

  • WCB
    Drawing
    • MODEL 150CCF
    • TYPE Check
    • CLASS ANSI 150
    • MATERIAL A216-WCB
    • CONN. RF
    • FEATURE Bolted cap
    • SIZE2"(50mm) ~ 30"(750)

    Cast ANSI 150 Carbon Steel Check Valve

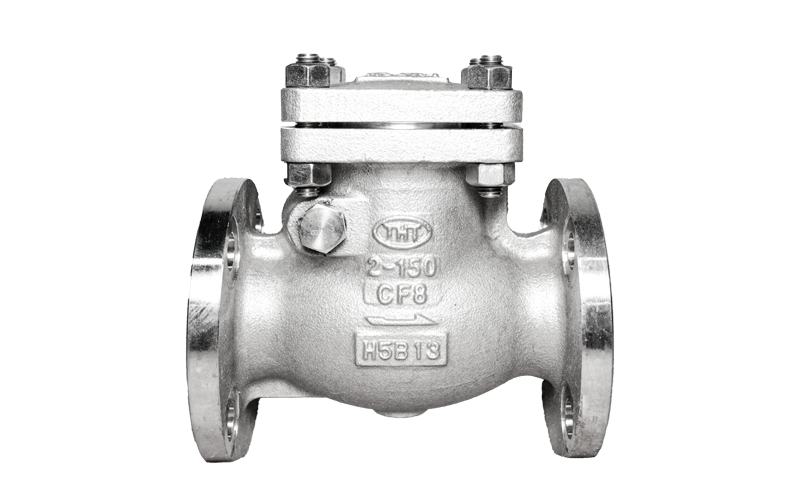

  • CF8
    Drawing
    • MODEL 150CUF
    • TYPE Check
    • CLASS ANSI 150
    • MATERIAL A351-CF8
    • CONN. RF
    • FEATURE Bolted cap
    • SIZE2"(50mm) ~ 30"(750)

    Cast ANSI 150 Stainless Steel Check Valve
