High Pressure Automatic ON-OFF Valve
  • Feature
  • Capacity

FEATURE

Model C-HI is a high-pressure (400~500 bar) 2-way ball valve with steel body and hard chrome plated ball. The ball seat is made of polyoxymethylene (POM) material with excellent wear resistance and chemical resistance, and the stem seal uses NBR to enhance sealing performance.

FLOTEC Model Name : C-HI

HIPRESSURE

CUSTOMIZED

3-way ports / Multi-way port / Ball valve-function system(Combinations) 볼밸브 조합 시스템 / Check and needle valve type

LINE UP

유압, 고압자동화 설비, 고압 시험장비 등 내구성이 필요한 다양한 산업분야에 사용 합니다. 사이즈 PF 1/4"(8A)~2"(50A) , NPT Connector 제공, Body재질 Steel, Stainless steel(SUS316Ti) 특수합금 SEAT는 POM, PTFE, METAL SEAL은 NBR, FKM, FFKM 이 가능합니다

Production Range
CLASS
PN400~500 bar
Size
1/4"(8A) ~ 2"(50A)
End Connection
PF Threaded (*NPT Connector 제공)
Feature
  • • High Pressure 2way ball valves
  • • Hard Chrome Plated ball
  • • POM Ball seat (High wear & chemical Resistance)
  • • NBR Stem Seal
Material
Stainless steel(SUS316Ti)
▼ ASTM Material Code Description -- Reference
A182-F304 (A351 CF8)
18-8 stainless steel for excellent corrosion resistance and durability. Used up to approximately 316°C.
  • HI PRESSURE
    Drawing
    • MODEL C-HI
    • TYPE BALL
    • Material:
       BODY - STEEL
      STEM - STEEL
      BALL - STEEL
      SEAT - POM
      O-ring - NBR
    • TYPE 2WAY, REDUCED BORE, FLOATING BALL
    • RAT'G PN500 BAR, SCREWED ENDS(PF)
    • ACT'R PNEUMATIC DUBLE ACTING
    • SIZE1/4"(8A) ~ 2"(50A)
    • SOV. PARKER, PHS510S-6-AC200V

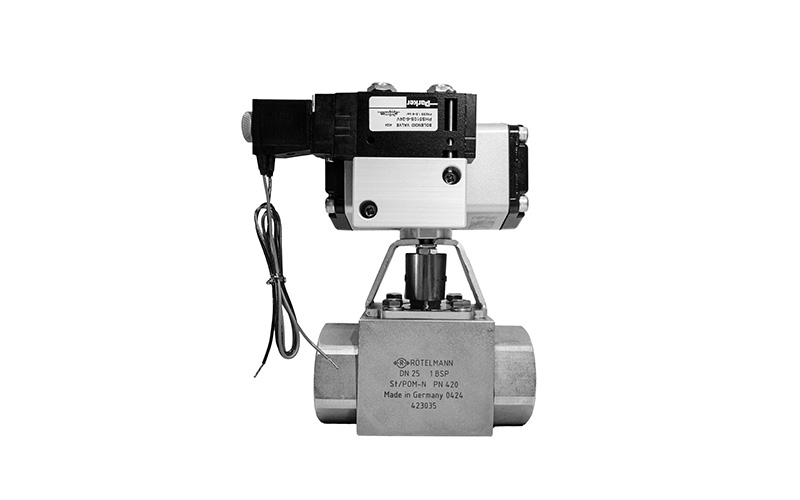

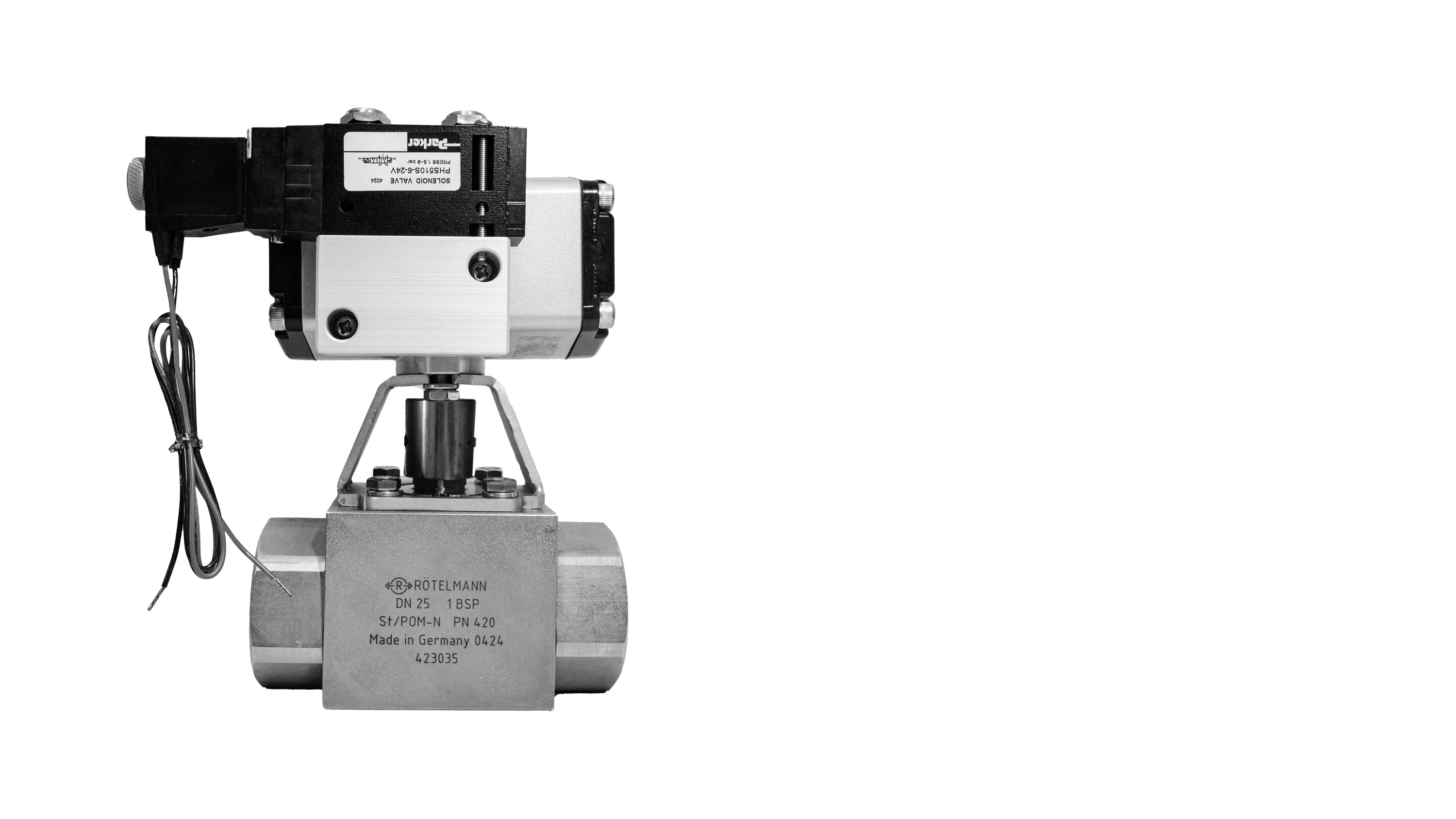

    PN500 Steel High Pressure ON-OFF Ball Valve
