FEATURE

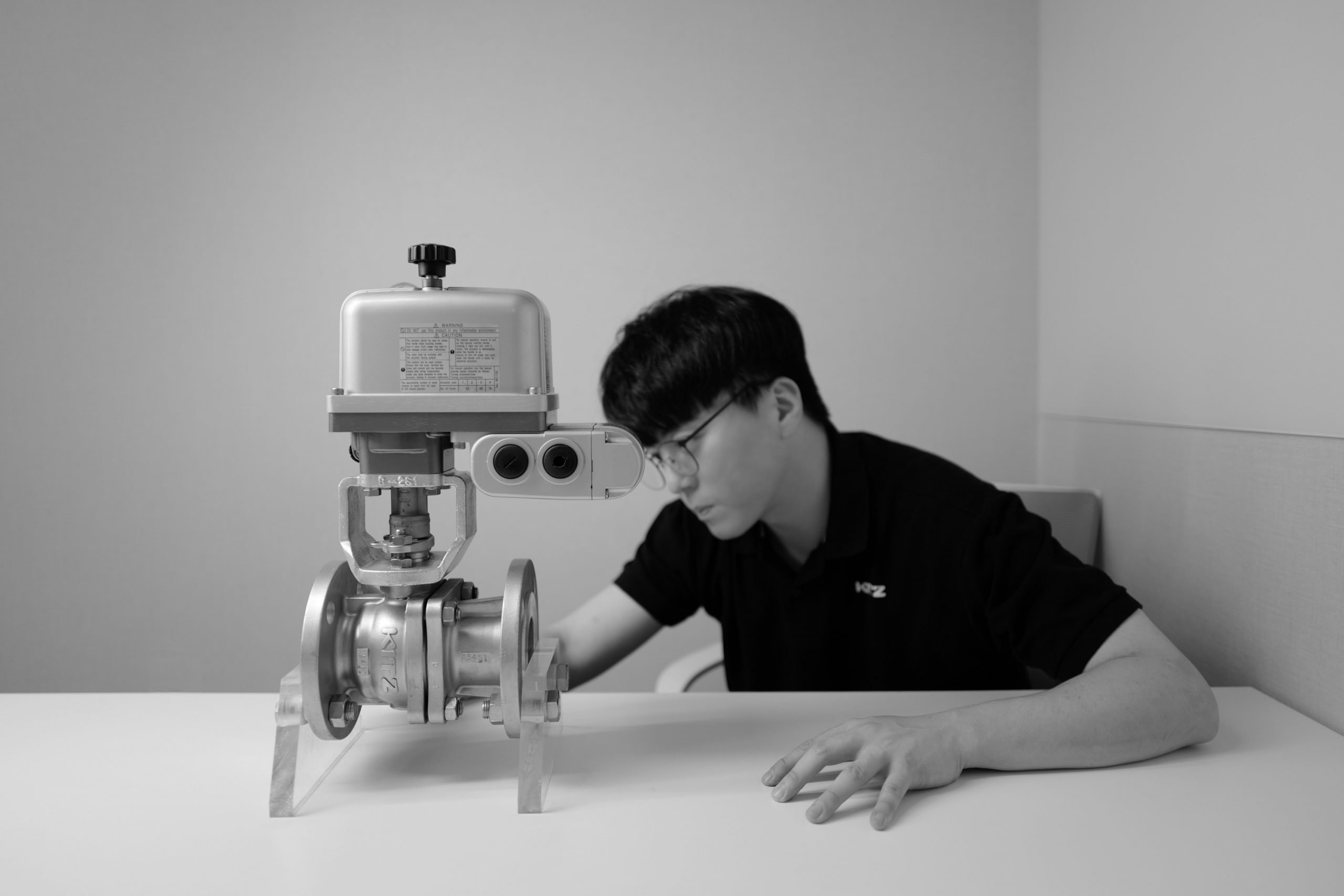

EX Series Electric Actuators
KITZ EX Series is a next-generation electric actuator applied to ball valves and butterfly valves. It is offered in two models, EXS and EXH, designed for high-speed (EXH) and standard speed (EXS) requirements.
Modularization and adoption of common parts enable flexible application and easy maintenance, and it has proven reliability and performance in various industrial environments.
Excellent Performance
Provides compact design and high output torque through high-ratio gear reduction (Planetary Gear).
IP67 waterproof and dustproof rating suitable for various indoor and outdoor environments.
Convenient Maintenance
Enhanced durability with stainless steel bolts.
Handle for manual operation and clear position indicator provided as standard.
Expandability
Various options (potentiometer, additional limit switches, etc.) can be added through module replacement.
Supports various power specifications from AC100V to AC240V.
LINE UP
KITZ FA Series is applied to ball valves and butterfly valves, using cast iron, ductile iron, stainless steel, carbon steel, and aluminum materials. Pressure ratings are divided into JIS 10K, JIS 20K, Class 150, and Class 300, and connection methods are provided in threaded, flanged, and wafer types. Size range is from 10mm to 300mm, covering small (10–80mm), medium (100–150mm), and large (200–300mm) sizes. Models are applied from FA-1 to FA-6, with FA-1 to FA-4 mainly for small sizes, FA-5 for medium, and FA-6 for large sizes.
-
Standard -

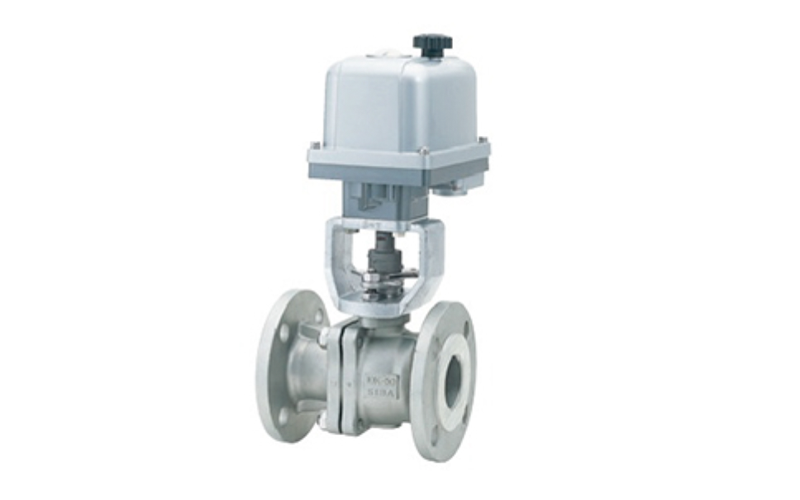

Model : EXH200-10UTB
- Material :
BODY - 304 Stainless Steel ( SCS13A)
STEM - 304 Stainless Steel ( SUS304)
BALL - 304 Stainless Steel ( SUS304)
SEAT - Reinforced Teflon ( HYPATITE PTFE)
PACKING - PTFE ( PTFE)
Type : SPLIT BODY, FULL BORE,
FLOATING 2-WAY BALL
Rating : JIS 10K RF-FLANGE ENDS
Actuator : PNEUMATIC DOUBLE ACTING
Size : 1/4"(8mm) ~ 2"(50mm)
- 10K Pneumatic ON-OFF Ball Valve
-
New-Standard -

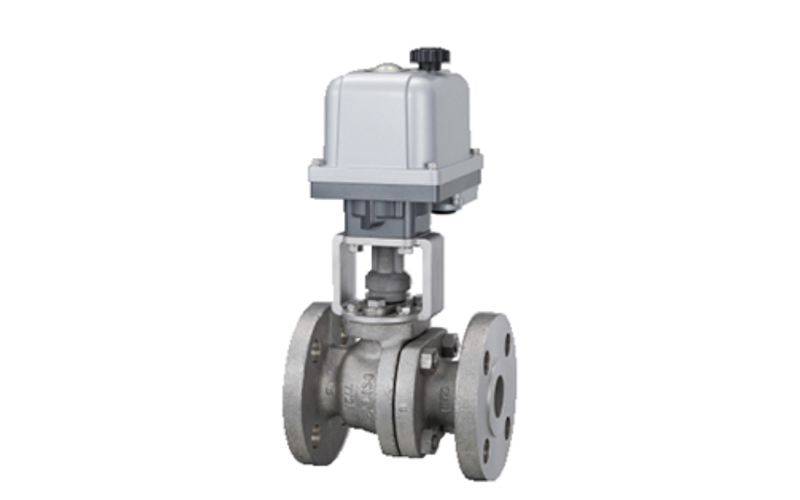

Model : EX200-10UTDZ
- Material :
BODY - 304 Stainless Steel ( SCS13A)
STEM - 304 Stainless Steel ( SUS304)
BALL - 304 Stainless Steel ( SUS304)
SEAT - Reinforced Teflon ( HYPATITE PTFE)
PACKING - PTFE ( PTFE)
Type : SPLIT BODY, FULL BORE,
FLOATING 2-WAY BALL
Rating : JIS 10K RF-FLANGE ENDS
Actuator : KITZ ELECTRIC ACTUATORS(HIGH SPEED)
Size : 1/2"(15mm) ~ 4"(100mm)
- 10K Electric ON-OFF Ball Valve
-
Standard -

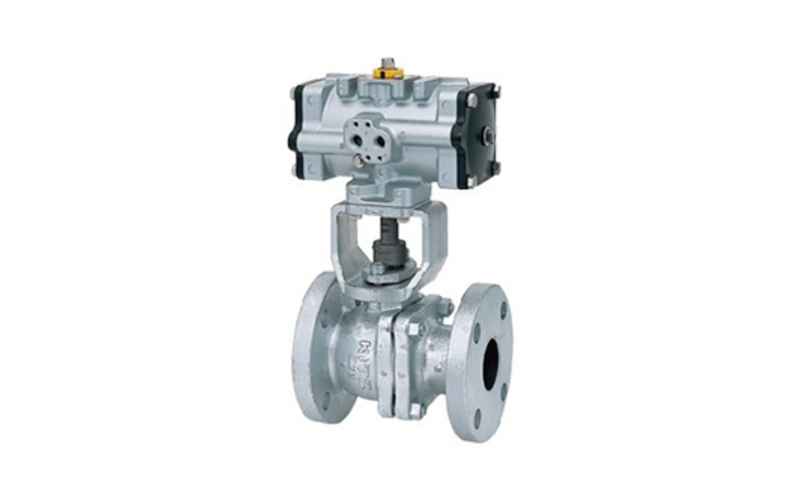

Model : FA-10FCTB
- Material :
BODY - Cast Iron ( FC200)
STEM - 403 Stainless Steel ( SUS403)
BALL - 304 Stainless Steel ( SUS304)
SEAT - Teflon ( PTFE)
PACKING - PTFE ( PTFE)
Type : SPLIT BODY, FULL BORE,
FLOATING 2-WAY BALL
Rating : JIS 10K FF-FLANGE ENDS
Actuator : PNEUMATIC DOUBLE ACTING
Size : 1/2"(15mm) ~ 4"(100mm)
- 10K Pneumatic ON-OFF Ball Valve
-
Cast Steel -

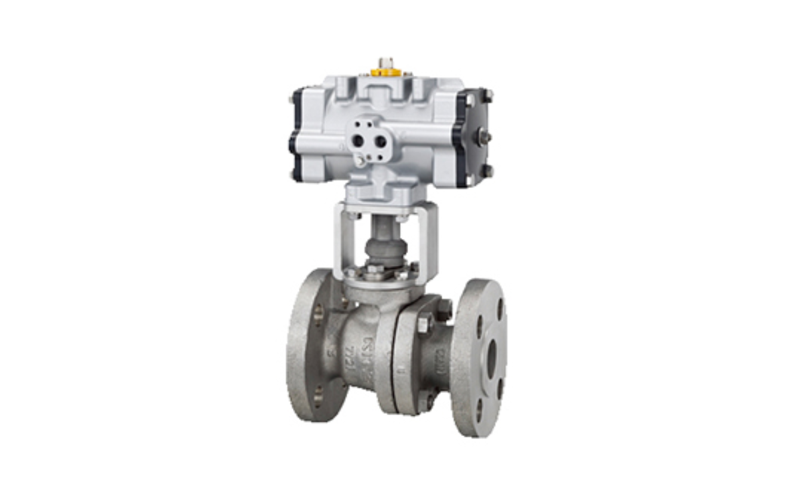

Model : FA-10SCTDZ
- Material :
BODY - Cast Steel ( A216 Gr.WCB)
STEM - 304 Stainless Steel ( SUS304)
BALL - 304 Stainless Steel ( SUS304)
SEAT - Reinforced Teflon ( HYPATITE PTFE)
PACKING - PTFE ( PTFE)
Type : SPLIT BODY, FULL BORE,
FLOATING 2-WAY BALL
Rating : JIS 10K RF-FLANGE ENDS
Actuator : PNEUMATIC DOUBLE ACTING
Size : 1/4"(8mm) ~ 2"(50mm)
- 10K Pneumatic ON-OFF Ball Valve
-
Aluminum ButterFly -

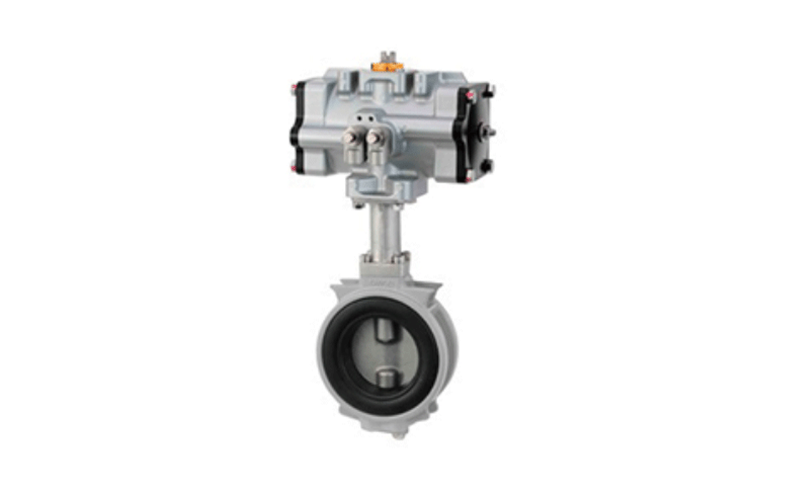

Model : FA-10XJMEA
- Material :
BODY - Aluminum ( ADC12)
STEM - Stainless Steel ( SUS403)
DISC - Stainless Steel ( SCS14A)
SEAT - Synthetic Rubber( EPDM)
END CONN. : JIS 10K WAFER ENDS
Actuator : KITZ PNEUMATIC DOUBLE ACTING
Condition : Max. 100°C / 10Kgf
Size : 1/4"(8mm) ~ 2"(50mm) -
10K Electric ON-OFF Stainless Steel 3WAY Ball Valve
-
Cast Iron ButterFly -
Model : FA-10DJ
- Material :
BODY - Cast Iron ( NBR)
STEM - 410 Stainless Steel ( SUS410)
DISC - Cast Iron ( FCD450-10)
SEAT - Synthetic Rubber( NBR)
END CONN. : JIS 10K WAFER ENDS
Actuator : KITZ PNEUMATIC DOUBLE ACTING
Condition : Max. 100°C / 10Kgf
Size : 1/4"(8mm) ~ 2"(50mm) -
10K Electric ON-OFF Stainless Steel 3WAY Ball Valve
