KITZ Ball Valve
  • Feature
  • Stainless
  • Carbon
  • Cast iron

FEATURE

KITZ Ball Valves are
manufactured with high-quality stainless steel (SUS304, SUS316), bronze, and brass, offering excellent corrosion resistance and durability, and are used in various industries such as chemical, petrochemical, energy, and water management. They are available in NPS (Inch) and DN (mm) specifications, and can be flexibly applied to piping systems with various connection methods such as flanged, threaded, and wafer types. Additionally, they comply with international standards such as ASME, JIS, and DIN, providing stable performance and high reliability even in high-temperature and high-pressure environments.

KITZ Model : BSW-300SCTDZ

KITZ BALL VALVES

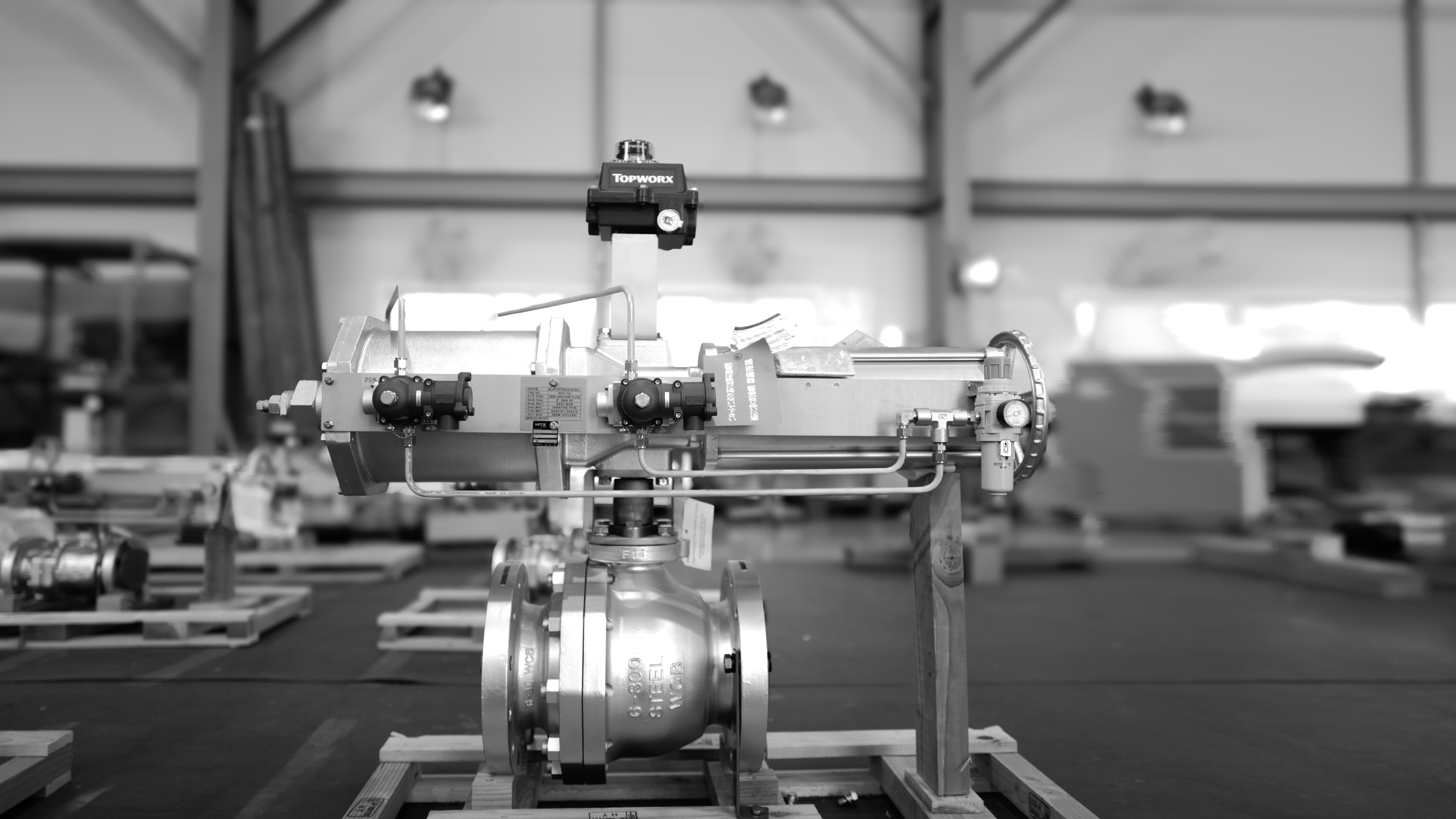

Actuated by pneumatic operated cylinder with double solenoid valves.

LINE UP

KITZ Ball Valves are available in various materials such as carbon steel, stainless steel, ductile iron, cast iron, and bronze alloys to meet various industrial requirements. These valves support a wide range of pressure ratings from 10K, 20K to Class 125, Class 150, Class 300, and Class 1500, making them suitable for various operating conditions. They offer various design options such as Full Bore, Reduced Bore, Uni-body, and Split Body, along with special designs such as Extension Bonnet, Pocketless, Jacketed, Tank Ball, and PFA Lined.. Additionally, multi-directional valves such as 3-Way 2-seat and 4-seat are also available to meet complex flow requirements.

Stainless Steel
Pressure rating
JIS 10, 20K / ASME Class 150, 300, 1500
Bore
Full bore, Reduced bore
Bonnet
Extentioned bonnet
Body design
Uni body (End entry), Split body (Side entry)
Jacketed
Jacketed
TRIM
304ss, 316ss
SIZE
304ss, 316ss
  • CLASS 150
    DWG

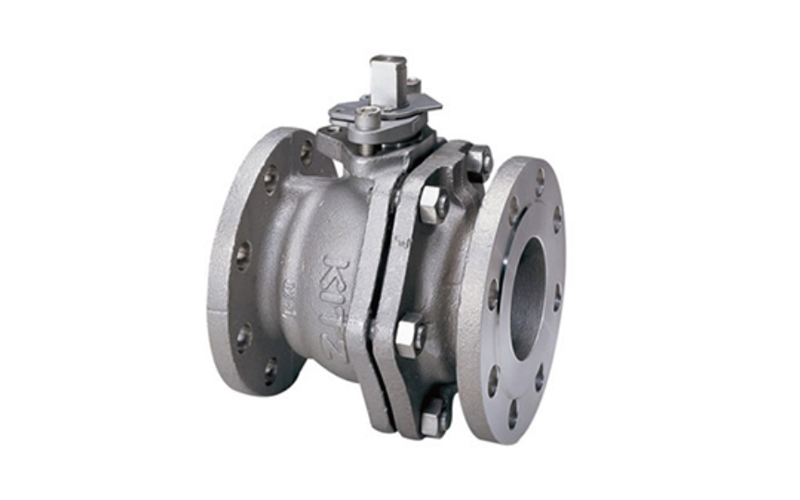

  • Model : 150UTB

  • Material :
    BODY - 304 Stainless Steel ( SCS13A)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Reinforced Teflon ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   ASME Class 150 RF-FLANGE ENDS
    Size :   1/4"(8mm) ~ 2"(50mm)
  • ASME Class 150 FLOATING Stainless Steel Ball Valve

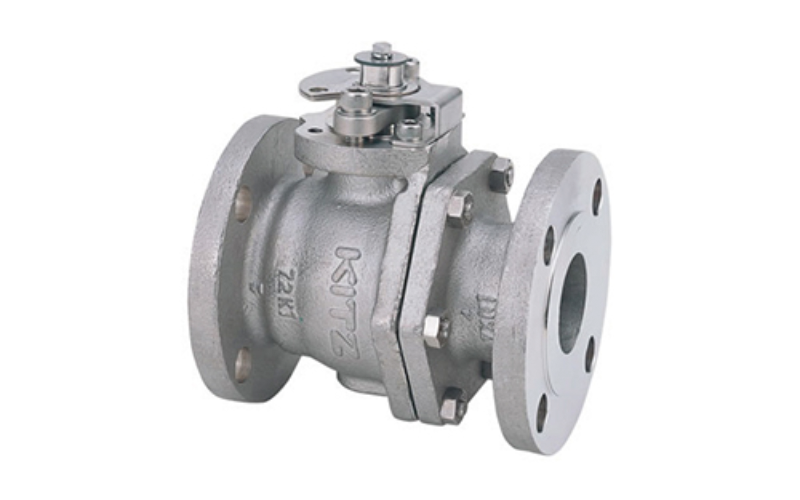

  • CLASS 150
    DWG

  • Model : 150UTDZ

  • Material :
    BODY - 304 Stainless Steel ( SCS13A)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Reinforced Teflon ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   ASME Class 150 RF-FLANGE ENDS
    Size :   1/4"(8mm) ~ 2"(50mm)
  • ASME Class 150 FLOATING Stainless Steel Ball Valve
  • Standard
    DWG

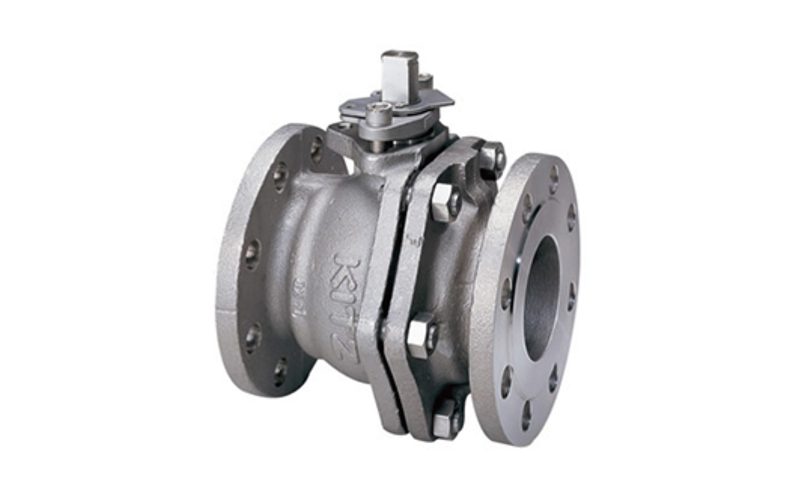

  • Model : 10UTB

  • Material :
    BODY - 304 Stainless Steel ( SCS13A)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Reinforced Teflon ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   JIS 10K RF-FLANGE ENDS
    Size :   1/4"(8mm) ~ 2"(50mm)
  • 10K FLOATING Stainless Steel Ball Valve
  • New-Standard
    DWG

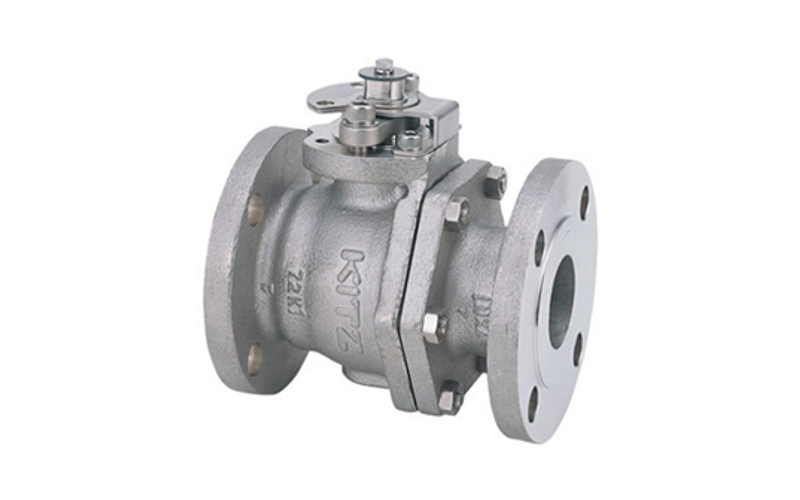

  • Model : 10UTDZ

  • Material :
    BODY - 304 Stainless Steel ( SCS13A)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Reinforced Teflon ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   JIS 10K RF-FLANGE ENDS
    Size :   1/4"(8mm) ~ 2"(50mm)
  • 10K FLOATING Stainless Steel Ball Valve

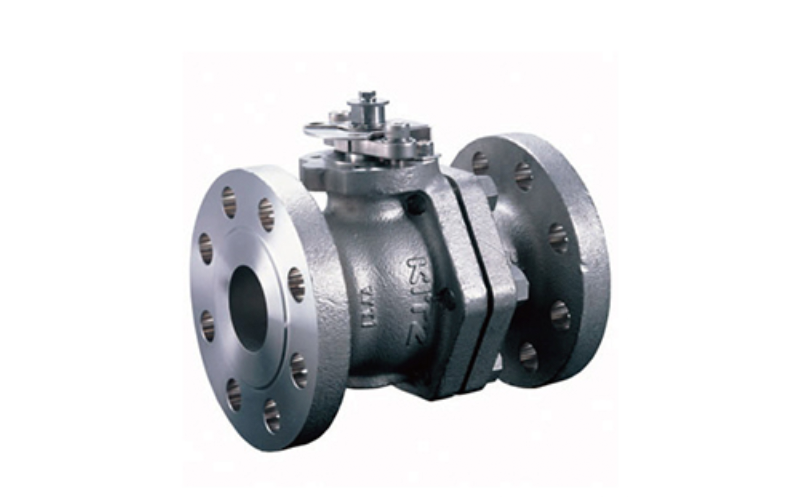

  • Floating Class 300
    DWG

  • Model : 300UTDZ

  • Material :
    BODY - 304 Stainless Steel ( SCS13A)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Reinforced Teflon ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   ASME Class 300 RF-FLANGE ENDS
    Size :   1/4"(8mm) ~ 2"(50mm)
  • ASME Class 300 FLOATING Stainless Steel Ball Valve
  • Floating Class 600
    DWG

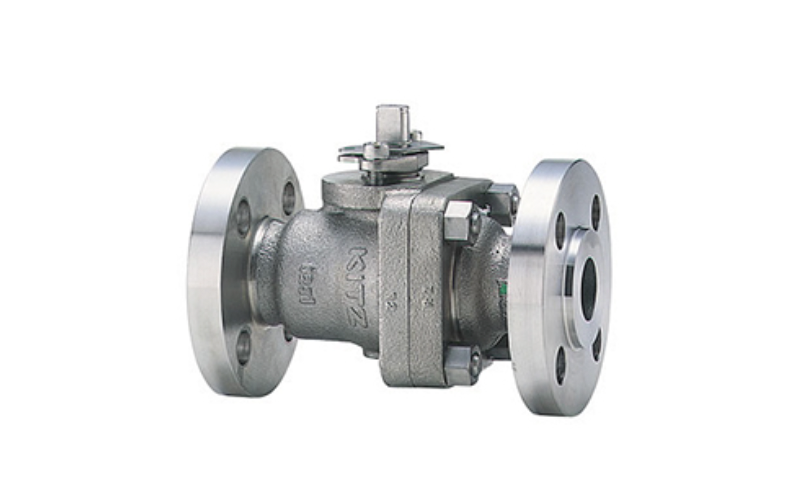

  • Model : 600UTB

  • Material :
    BODY - 304 Stainless Steel ( SCS13A)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Reinforced Teflon ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   ASME Class 600 RF-FLANGE ENDS
    Size :   1/4"(8mm) ~ 2"(50mm)
  • ASME Class 600 FLOATING Stainless Steel Ball Valve
  • Floating Class 1500

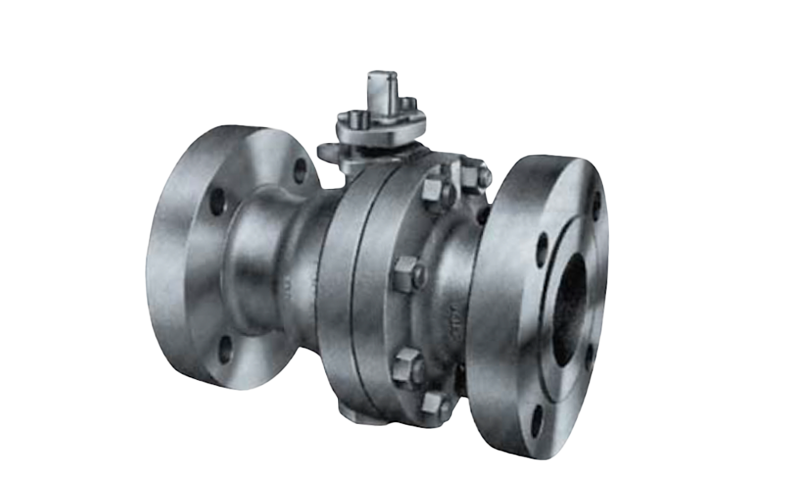

  • Model : 1500UTB

  • Material :
    BODY - Stainless Steel ( CF8)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Reinforced Nylon Sheet ( Nylon with MoS2)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   ASME CLASS 1500 RF-FLANGE ENDS
    Size :   1/2"(15mm) ~ 8"(200mm)
  • CLASS 1500 FLOATING Ball Valve

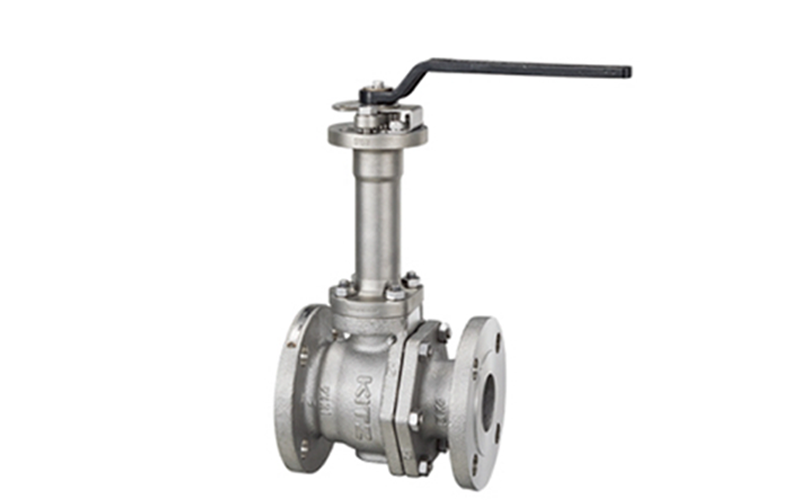

  • Extention bonne For low Temp －104℃
    DWG

  • Model : 150UTDZXL

  • Material :
    BODY - Stainless Steel ( CF8)
    BONNET - Stainless Steel ( CF8)
    STEM - 304 Stainless Steel ( CF8)
    BALL - 304 Stainless Steel ( Type304)
    SEAT - Reinforced Teflon Sheet ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL, EXTENTION BONNET
    Rating :   ASME CLASS 300 RF-FLANGE ENDS
    Size :   1/2"(15mm) ~ 10"(250mm)
    Option :  CF8M/316 Body & Trim
  • CLASS 150 Extention bonnet Low Temperature Ball Valve
  • Extention bonne For low Temp －104℃
    DWG

  • Model : 300UTDZXL

  • Material :
    BODY - Stainless Steel ( CF8)
    BONNET - Stainless Steel ( CF8)
    STEM - 304 Stainless Steel ( CF8)
    BALL - 304 Stainless Steel ( Type304)
    SEAT - Reinforced Teflon Sheet ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL, EXTENTION BONNET
    Rating :   ASME CLASS 300 RF-FLANGE ENDS
    Size :   1/2"(15mm) ~ 10"(250mm)
    Option :  CF8M/316 Body & Trim
  • CLASS 300 Extention bonnet Low Temperature Ball Valve
  • 3WAY L-PORT
    DWG

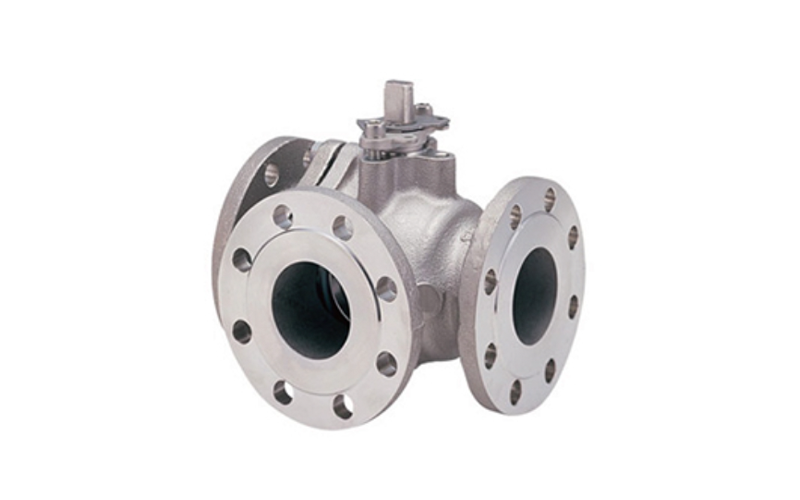

  • Model : 10UTB2L

  • Material :
    BODY - Stainless Steel ( SCS13A)
    STEM - 304 Stainless Steel ( SCS13A)
    BALL - 304 Stainless Steel ( 304SS)
    SEAT - Reinforced Teflon Sheet ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 3-WAY 2-SEATS L-PORT BALL
    Rating :   JIS 10K RF-FLANGE ENDS L-PORT(2seats)
    Size :   1"(25mm) ~ 4"(100mm)
    Option :  Class 150, 316 Body and Trim
  • 3-WAY(2Seats) L-PORT BALL VALVES
  • 3WAY L-PORT(4Seats)
    DWG

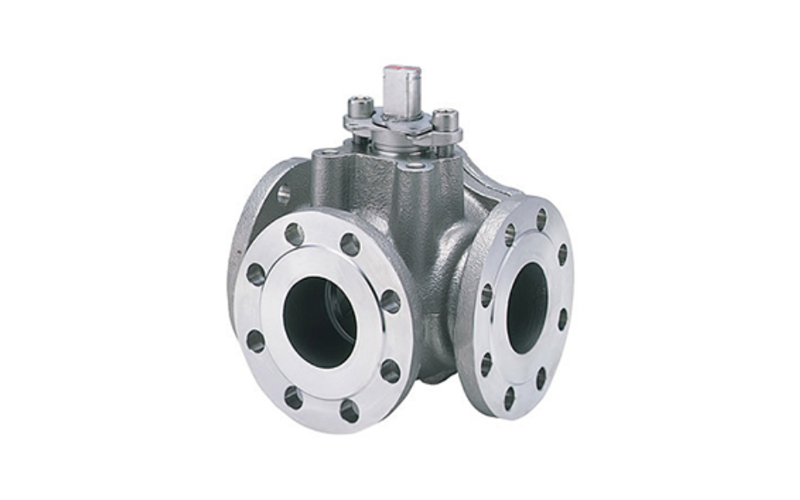

  • Model : 10UTB4LA

  • Material :
    BODY - Stainless Steel ( SCS13A)
    STEM - 304 Stainless Steel ( SCS13A)
    BALL - 316 Stainless Steel ( 316SS)
    SEAT - Reinforced Nylon Sheet ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 3-WAY 4-SEATS L-PORT BALL
    Rating :   JIS 10K RF-FLANGE ENDS L-PORT(4seats)
    Size :   1"(25mm) ~ 4"(100mm)
    Option :  Class 150, CF8M/316 Body & Trim
  • 3-WAY(4Seats) L-PORT BALL VALVES

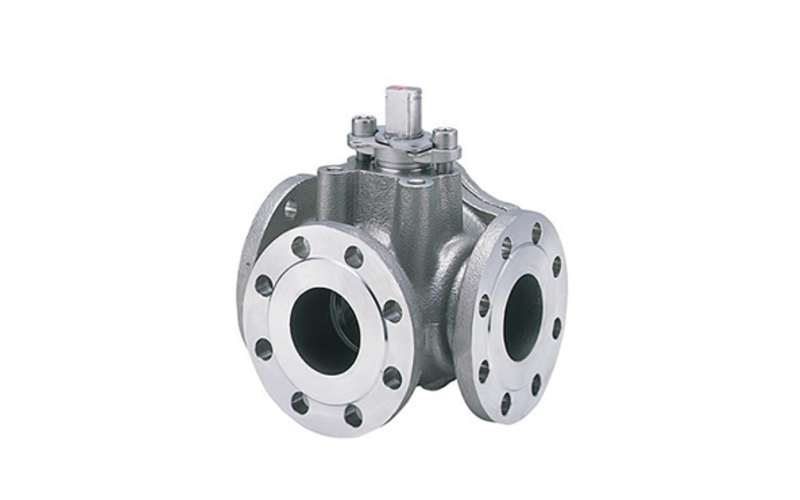

  • 3WAY T-PORT(4Seats)
    DWG

  • Model : 10UTB4TA

  • Material :
    BODY - Stainless Steel ( SCS13A)
    STEM - 304 Stainless Steel ( SCS13A)
    BALL - 316 Stainless Steel ( 316SS)
    SEAT - Reinforced Nylon Sheet ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 3-WAY 4-SEATS T-PORT BALL
    Rating :   JIS 10K RF-FLANGE ENDS T-PORT(4seats)
    Size :   1/2"(15mm) ~ 6"(150mm)
    Pattern :   PATTERN 1,2,3,4
    Option :  CF8M/316 Body & Trim
  • 3-WAY(4Seats) T-PORT BALL VALVES
  • POCKETLESS 304SS
    DWG

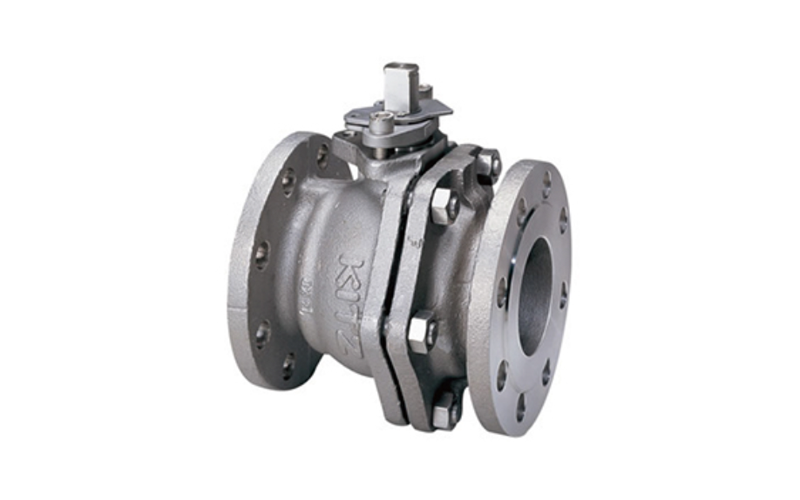

  • Model : 150UTBP

  • Material :
    BODY - Stainless Steel ( SCS13A)
    STEM - 304 Stainless Steel ( SCS13A)
    BALL - 304 Stainless Steel ( 304SS)
    SEAT - Reinforced Teflon Sheet ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING POCKETLESS BALL
    Rating :   Class 150 RF-FLANGE ENDS POCKETLESS
    Size :   1/2"(15mm) ~ 8"(200mm)
  • Class 150 POCKETLESS BALL VALVES
  • POCKETLESS 316SS
    DWG

  • Model : 150UTBPM

  • Material :
    BODY - 316 Stainless Steel ( SCS14A)
    STEM - 316 Stainless Steel ( SCS14A)
    BALL - 316 Stainless Steel ( 316SS)
    SEAT - Reinforced Teflon Sheet ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING POCKETLESS BALL
    Rating :   Class 150 RF-FLANGE ENDS POCKETLESS
    Size :   1/2"(15mm) ~ 8"(200mm)
  • Class 150 POCKETLESS BALL VALVES
  • JACKETED BALL VALVES
    DWG

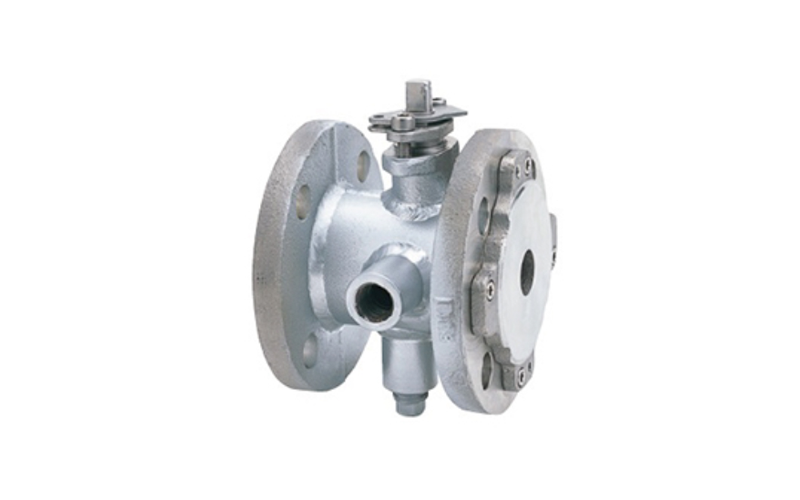

  • Model : 150UTBJ

  • Material :
    BODY - 304 Stainless Steel ( SCS13A)
    STEM - 304 Stainless Steel ( SCS13A)
    BALL - 304 Stainless Steel ( 304SS)
    JACKET - Cast Steel ( Carbon Steel )
    SEAT - Reinforced Teflon Sheet ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING JACKETED BALL
    Rating :   Class 150 RF-FLANGE ENDS
    Size :   1/2"(15mm) ~ 21/2"(65mm)
    Option :  JIS 10K, CF8M/316 Body & Trim
  • Class 150 JACKETED BALL VALVES

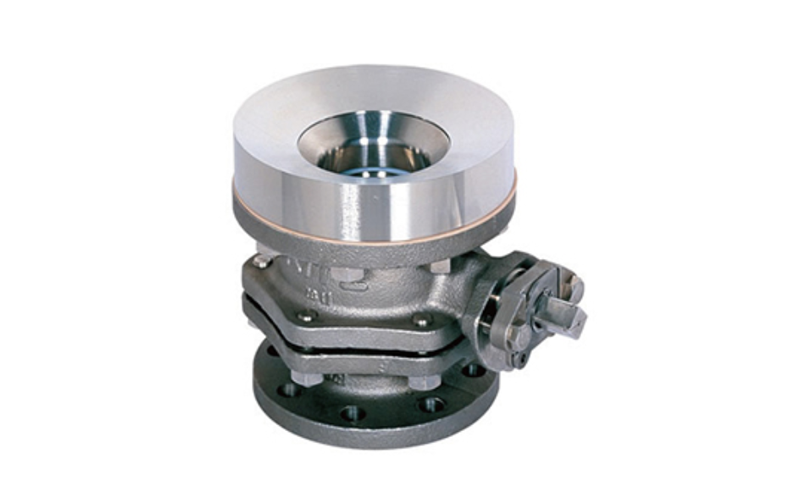

  • TANK BOTTOM BALL VALVES
    DWG

  • Model : 10UTBT

  • Material :
    BODY - 304 Stainless Steel ( SCS13A)
    STEM - 304 Stainless Steel ( SCS13A)
    BALL - 304 Stainless Steel ( 304SS)
    SEAT - Reinforced Teflon Sheet ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :   SPLIT BODY, FULL BORE,
    FLOATING TANK BOTTOM BALL
    Rating :  JIS 10K RF-FLANGE ENDS
    Size :   1"(25mm) ~ 10"(250mm)
  • JIS 10K TANK BOTTOM BALL VALVES
  • PFA LINED BALL VALVES
    DWG

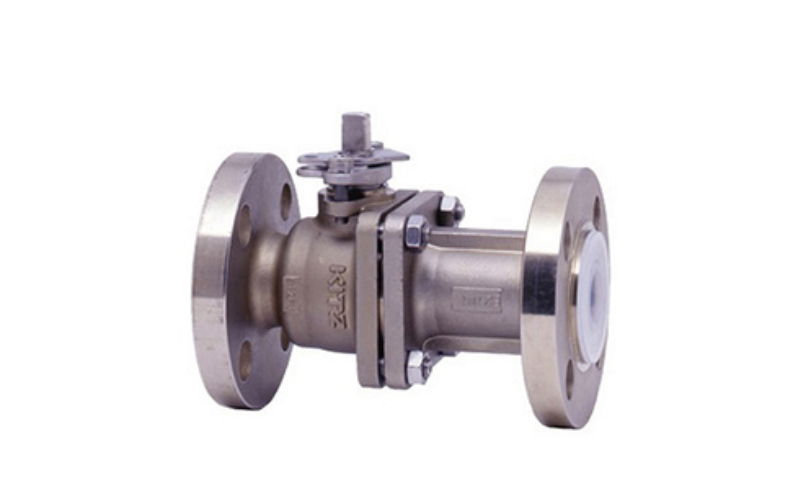

  • Model : 10UTBLN

  • Material :
    BODY - 304 Stainless Steel + PFA ( SCS13A+PFA)
    STEM - 304 Stainless Steel + PFA( SCS13A+PFA)
    BALL - 304 Stainless Steel + PFA ( 304SS)
    SEAT - Reinforced Teflon Sheet ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :   SPLIT BODY, FULL BORE,
    FLOATING PFA LINED BALL
    Rating :  JIS 10K RF-FLANGE ENDS
    Size :   1/2"(20mm) ~ 4"(100mm)
    Option :  Class 150, 316SS+PFA Body
  • JIS 10K PFA LINED BALL VALVES
  • 3 PIECES BALL VALVES
    DWG

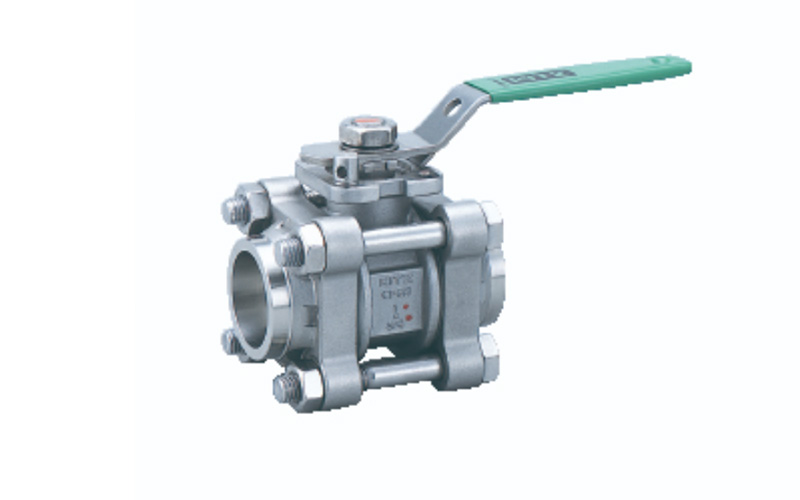

  • Model : SWU3TZM

  • Material :
    BODY - 316 Stainless Steel ( CF8M)
    STEM - 316 Stainless Steel
    BALL - 316 Stainless Steel
    SEAT - Reinforced Teflon Sheet ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :   3PICES BODY, REDUCED BORE,
    Rating :  TYPE 1000 SOCKET WELD ENDS
    Size :   1/2"(20mm) ~ 2"(50mm)
    Option :  FULL BORE, SCREWED ENDS
  • TYPE 1000 3-PIECES BALL VALVES
Carbon Steel ( Floating Ball Valves )
Pressure rating
JIS 10, 20K / ASME Class 150, 300, 600, 1500
Bore
Full bore, Reduced bore
Body design
Uni body (End entry), Split body (Side entry)
TRIM
304ss, 316ss, SFNI (Special Faced with Nickel and Chrom)
SIZE
304ss, 316ss
  • Cast Steel
    DWG

  • Model : 10SCTDZ

  • Material :
    BODY - Cast Steel ( A216 Gr.WCB)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Reinforced Teflon ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   JIS 10K RF-FLANGE ENDS
    Size :   1/2"(15mm) ~ 10"(250mm)
  • CLASS 150 Cast Steel FLOATING Ball Valve
  • Cast Steel
    DWG

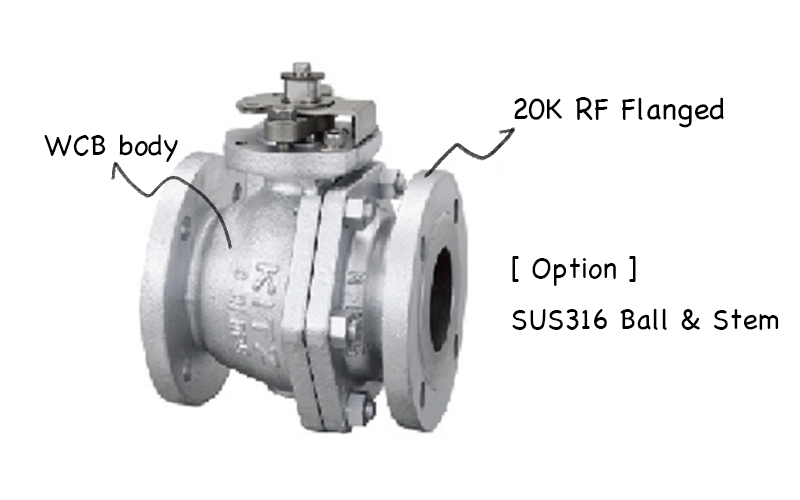

  • Model : 20SCTDZ

  • Material :
    BODY - Cast Steel ( A216 Gr.WCB)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Reinforced Teflon ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   JIS 20K RF-FLANGE ENDS
    Size :   1/2"(15mm) ~ 8"(200mm)
  • 10K Pneumatic Cast Steel ON-OFF Ball Valve
  • Cast Steel
    DWG

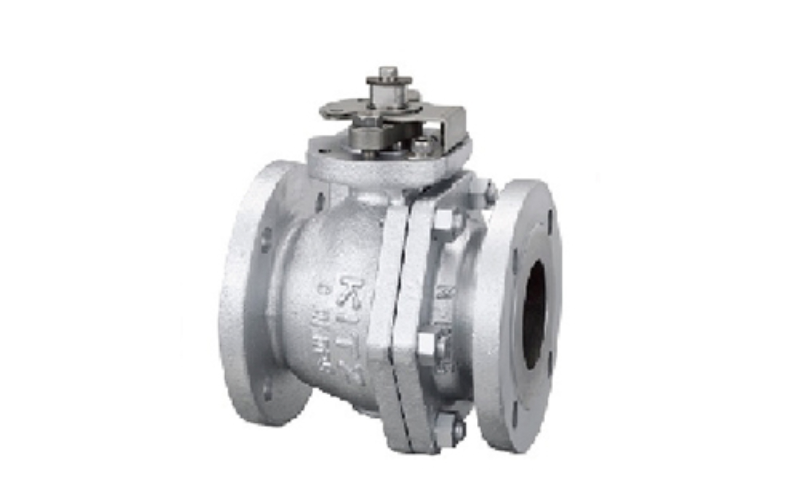

  • Model : 150SCTDZ

  • Material :
    BODY - Cast Steel ( A216 Gr.WCB)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Reinforced Teflon ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   ASME CLASS 150 RF-FLANGE ENDS
    Size :   1/2"(15mm) ~ 8"(200mm)
  • 10K Pneumatic Cast Steel ON-OFF Ball Valve
  • Cast Steel
    DWG

  • Model : 300SCTDZ

  • Material :
    BODY - Cast Steel ( A216 Gr.WCB)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Reinforced Teflon ( HYPATITE PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   ASME CLASS 300 RF-FLANGE ENDS
    Size :   1/2"(15mm) ~ 8"(200mm)
  • CLASS 300 Cast Steel FLOATING Ball Valve

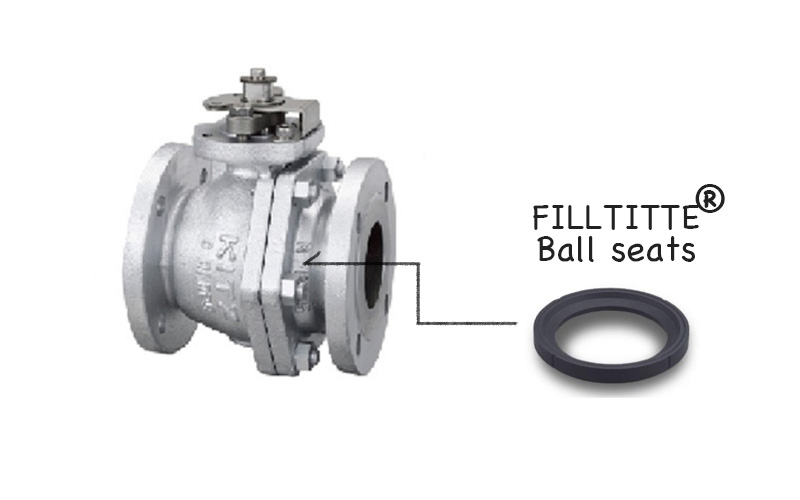

  • FILLTITE®
    Max 300°c
    DWG

  • Model : 10SCTDZ1H

  • Material :
    BODY - Cast Steel ( A216 Gr.WCB)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Reinforced Teflon ( FILLTETE®)
    PACKING - FLEXIBLE GRAPHITE ( FLEXIBLE GRAPHITE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   ASME CLASS 300 RF-FLANGE ENDS
    Size :   1/2"(15mm) ~ 10"(250mm)
  • 10K Cast Steel FLOATING Ball Valve (KITZ FILLTITE Ball Seat)

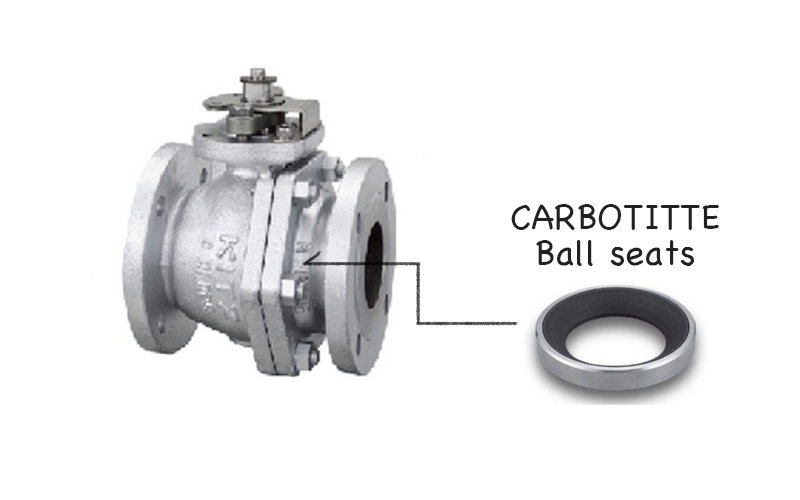

  • CARBOTITE®
    Max 450°c
    DWG

  • Model : 10SCTDZ3H

  • Material :
    BODY - Cast Steel ( A216 Gr.WCB)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Reinforced Teflon ( CARBON+STAINLESS STEEL)
    PACKING - FLEXIBLE GRAPHITE ( FLEXIBLE GRAPHITE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   ASME CLASS 300 RF-FLANGE ENDS
    Size :   1/2"(15mm) ~ 8"(200mm)
  • 10K Cast Steel FLOATING Ball Valve (CARBOTITE Ball Seat)
  • Metal seat(5H)®
    Max 300°c
    DWG

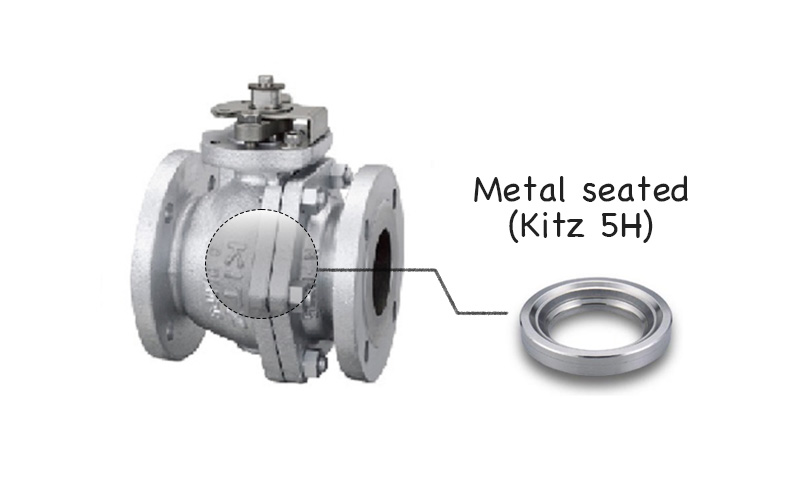

  • Model : 10SCTDZ5H

  • Material :
    BODY - Cast Steel ( A216 Gr.WCB)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 304 Stainless Steel ( SUS316)
    SEAT - Reinforced Teflon ( STAINLESS STEEL+SFNI)
    PACKING - FLEXIBLE GRAPHITE ( FLEXIBLE GRAPHITE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   ASME CLASS 300 RF-FLANGE ENDS
    Size :   1/2"(15mm) ~ 8"(200mm)
  • 10K Cast Steel FLOATING Ball Valve (KITZ 5H Metal ball seats)
  • Metal seat(6H)®
    Max 500°c
    DWG

  • Model : 10SCTDZ6H

  • Material :
    BODY - Cast Steel ( A216 Gr.WCB)
    STEM - 304 Stainless Steel ( SUS304)
    BALL - 316 Stainless Steel+SFNI ( 316SS+SFNI)
    SEAT - Reinforced Teflon ( 316SS+SFNI)
    PACKING - FLEXIBLE GRAPHITE ( FLEXIBLE GRAPHITE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   ASME CLASS 300 RF-FLANGE ENDS
    Size :   1/2"(15mm) ~ 8"(200mm)
  • 10K Cast Steel FLOATING Ball Valve (KITZ 6H Metal ball seats)
Cast iron
  • Cast Iron(FC200)
    DWG

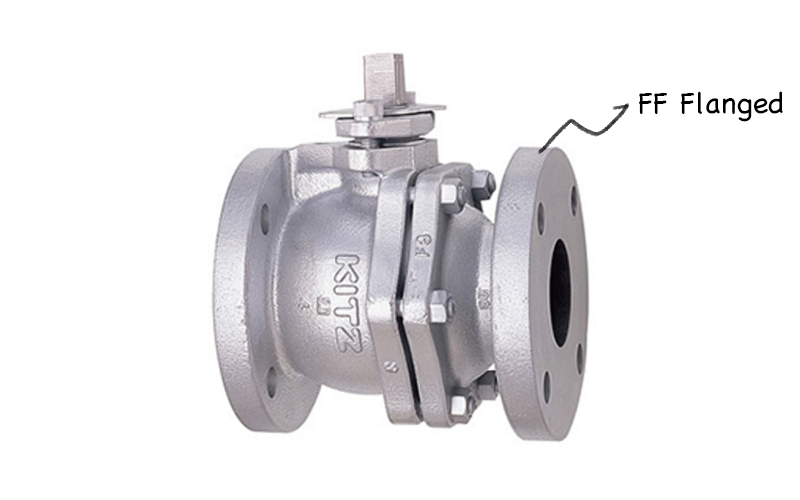

  • Model : 10FCTB

  • Material :
    BODY - Cast Iron ( FC200)
    STEM - 403 Stainless Steel ( SUS403)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Teflon ( PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   JIS 10K FF-FLANGE ENDS
    Size :   1/4"(8mm) ~ 2"(50mm)
  • 10K Cast Iron Ball Valve
  • Cast Iron(FCD-S)
    DWG

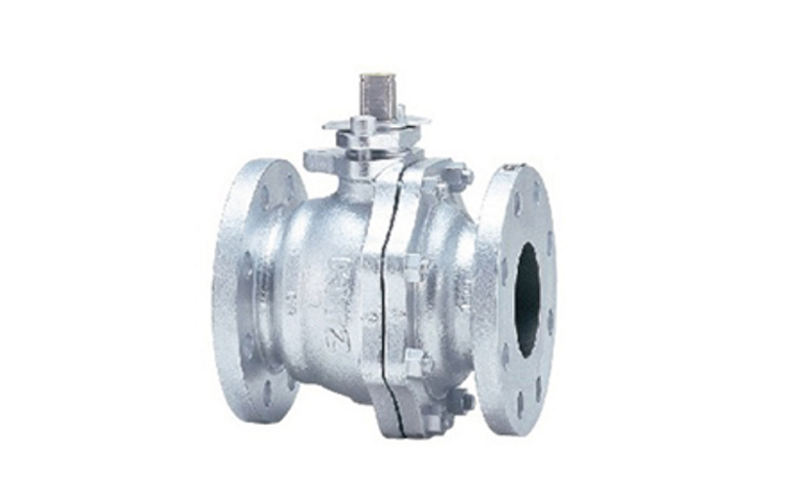

  • Model : 10STBF

  • Material :
    BODY - Cast Iron ( FCD-S)
    STEM - 403 Stainless Steel ( SUS403)
    BALL - 304 Stainless Steel ( SUS304)
    SEAT - Teflon ( PTFE)
    PACKING - PTFE ( PTFE)
    Type :    SPLIT BODY, FULL BORE,
    FLOATING 2-WAY BALL
    Rating :   JIS 10K FF-FLANGE ENDS
    Size :   1/2"(815m) ~ 8"(200mm)
    Option :  Class 125, Reduced, 3way/2seats(*Size varies by option)
  • 10K Cast Iron Ball Valve
