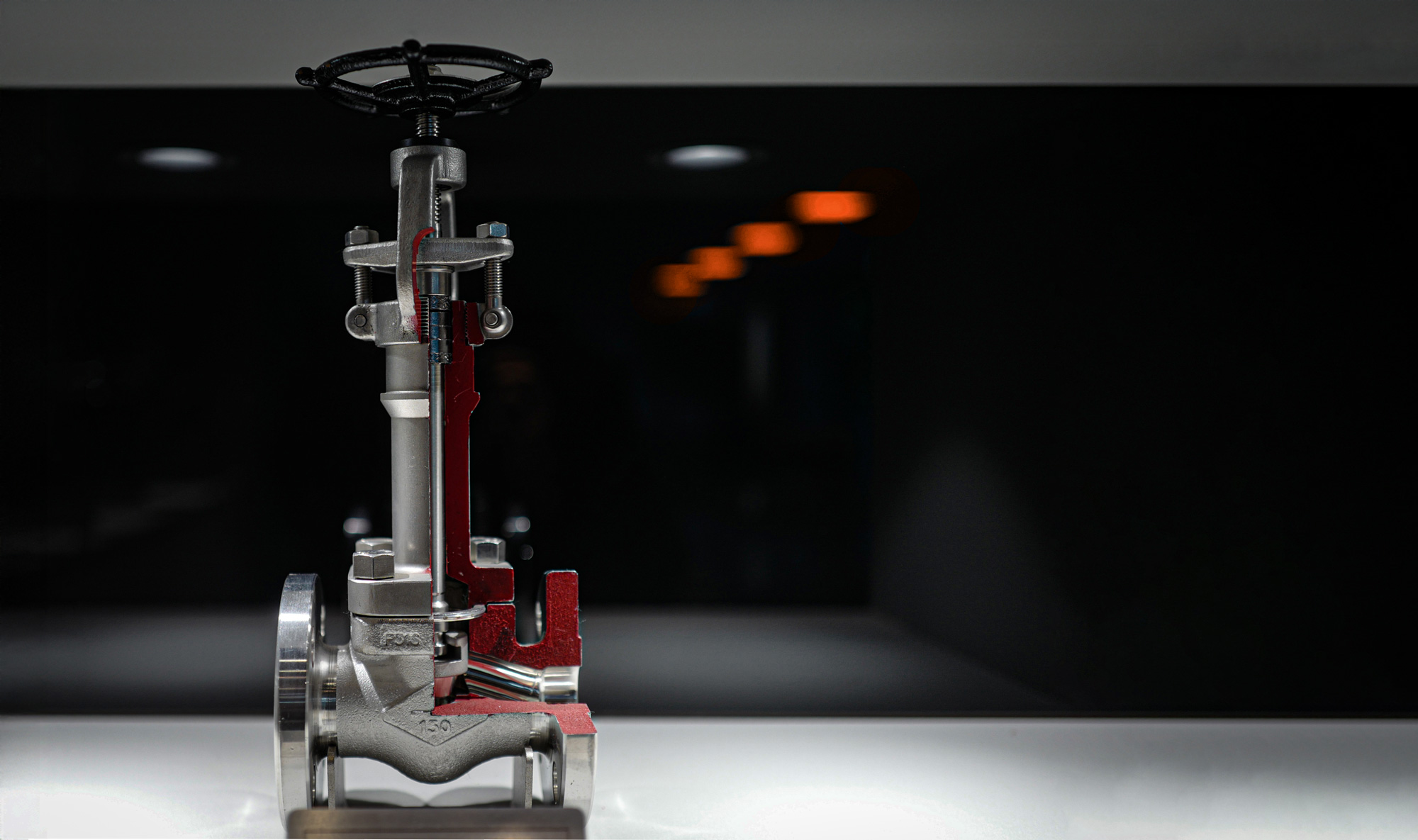

Forged Globe Valve

FEATURE

Globe valves are suitable for flow control (throttling) applications and provide accurate and repeatable flow control. However, when pressure drop exceeds 20%, excessive noise and vibration may occur if the valve is controlled too finely, which can damage the valve or piping. If such conditions are expected, please contact us for appropriate measures.

FLOTEC Model : F150GUF

FORGED GLOBE

CUSTOMIZED

API 800, 1500 / ASME Class 150, 300, 600, 900, 1500, 2500 /Socket welding, Threaded, Butt welding, Flanged/ Bolted Bonnet or Welded Bonnet, Outside Screw & Yoke, Solid Wedge Disc, Renewable Seat./ ASTM A105, A182-F5, A182-F9, A182-F11, A182-F22, A182-F304, A182-F316, A182-F304L, A182-F316L, A182-F321, A182-F347, A182-F51, A182-F91, A350-LF2

Capacity
CLASS
API 800, 1500 / ASME Class 150, 300, 600, 900, 1500, 2500, 4500 / JIS 10K, 20K, 30K, 63K
Size
3/8", 1/2", 3/4", 1", 1 1/4", 1 1/2", 2"
End Connection
Socket welding, Threaded, Butt welding, Flanged
Feature
Bolted Bonnet or Welded Bonnet, Outside Screw & Yoke, Plug Disc Parabolic Disc.
Material
ASTM A105, A182-F5, A182-F9, A182-F11, A182-F22, A182-F304, A182-F316
A182-F304L, A182-F316L, A182-F321, A182-F347, A182-F51, A182-F91, A350-LF2
▼ ASTM Material Code Description -- Reference
A105 (A216 WCB)
Forged Carbon Steel
Forged carbon steel suitable for high temperature and high pressure applications. Maximum use temperature approximately 425°C.
A350-LF2 (A352 LCB)
Low Temperature Forged Carbon Steel
Carbon steel for low temperature environments with excellent impact resistance. Used below -46°C.
A182-F304 (A351 CF8)
304 Stainless Steel
18-8 stainless steel with excellent corrosion resistance and durability. Maximum use temperature approximately 316°C.
A182-F316 (A351 CF8M)
316 Stainless Steel
18-12 stainless steel with added molybdenum for enhanced corrosion resistance and durability. Maximum use temperature approximately 316°C.
A182-F304L (A351 CF3)
Low Carbon 304
Low carbon version of F304 with excellent weldability. Maximum use temperature approximately 316°C.
A182-F316L (A351 CF3M)
Low Carbon 316
Low carbon version of F316 with excellent weldability. Maximum use temperature approximately 316°C.
A182-F321 (A351 CF8C)
Titanium Stabilized Stainless
Titanium stabilized austenitic stainless steel suitable for high temperature environments. Maximum use temperature approximately 425°C.
A182-F347 (A351 CF8C)
Niobium Stabilized Stainless
Niobium stabilized austenitic stainless steel suitable for high temperature environments. Maximum use temperature approximately 425°C.
A182-F5 (A217 C5)
5 Chromium Steel
Alloy steel containing 5% chromium and 0.5% molybdenum with excellent high temperature and high pressure corrosion resistance. Maximum use temperature approximately 593°C.
A182-F9 (A217 C12)
9 Chromium Steel
9% chromium alloy steel with excellent high temperature and creep resistance. Maximum use temperature approximately 649°C.
A182-F11 (A217 WC6)
Medium Temperature Chromium-Moly
Alloy steel containing 1.25% chromium and 0.5% molybdenum for medium temperature and high pressure applications. Maximum use temperature approximately 538°C.
A182-F22 (A217 WC9)
High Temperature Chromium-Moly
2.25% chromium, 1% molybdenum alloy steel suitable for high temperature environments. Maximum use temperature approximately 593°C.
A182-F51 (A890 4A)
Duplex
Duplex stainless steel with excellent strength and corrosion resistance. Maximum use temperature approximately 316°C.
A182-F91 (A217 C12)
High Temperature Creep Steel
9% chromium, 1% molybdenum alloy steel with excellent high temperature creep resistance. Maximum use temperature approximately 649°C.

LINE UP

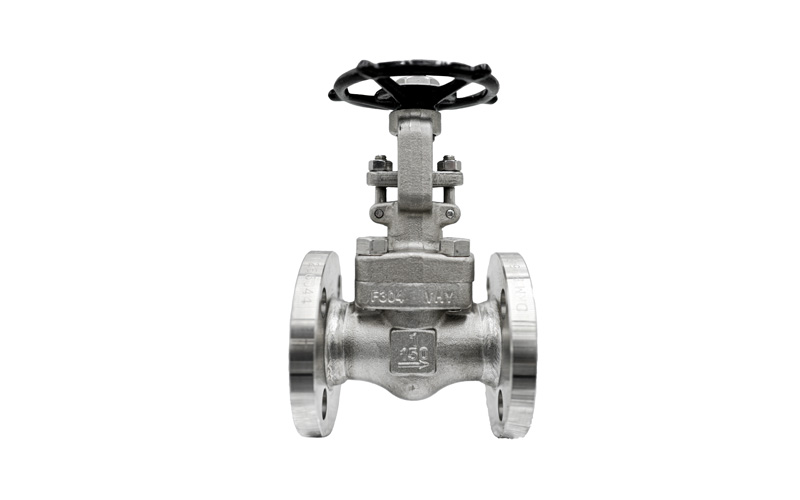

  • F304
    DWG
    • MODEL F150GUF
    • TYPE Globe
    • CLASS ANSI 150
    • Material A182-F304
    • CONN. Flanged
    • FEATURE Bolted
    • Size3/8"(10mm) ~ 2"(50mm)

    Forged 150# Stainless Steel Globe Valve

  • F304 /10K
    DWG
    • MODEL F10GUF
    • TYPE Globe
    • CLASS JIS 10K
    • Material A182-F304
    • CONN. Flanged
    • FEATURE Bolted
    • Size3/8"(10mm) ~ 2"(50mm)

    Forged JIS 10K Stainless Steel Globe Valve

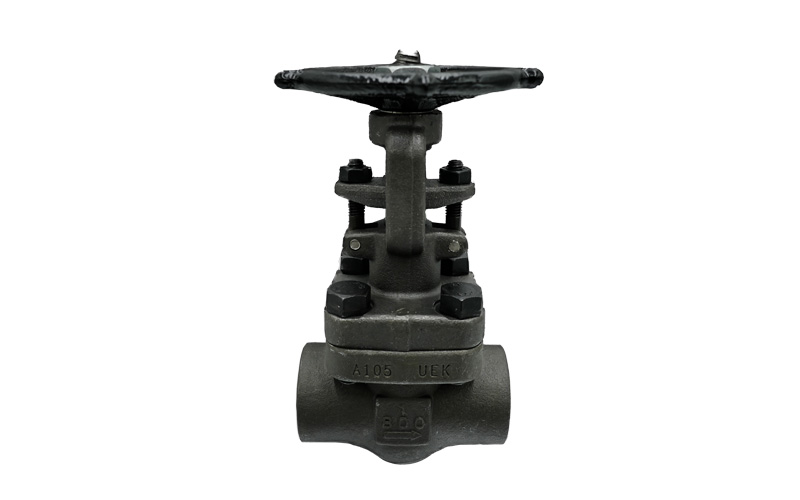

  • A105
    DWG
    • MODEL F800GCW
    • TYPE Globe
    • CLASS API 800
    • Material A105
    • CONN. Socket welding
    • FEATURE Bolted
    • Size3/8"(10mm) ~ 2"(50mm)

    Forged API 800 Carbon Steel Globe Valve

  • A105 / Screwed
    DWG
    • MODEL F800GCS(NPT)
    • TYPE Globe
    • CLASS API 800
    • Material A105
    • CONN. Screwed(NPT)
    • FEATURE Bolted
    • Size3/8"(10mm) ~ 2"(50mm)

    Forged API 800 Carbon Steel Globe Valve

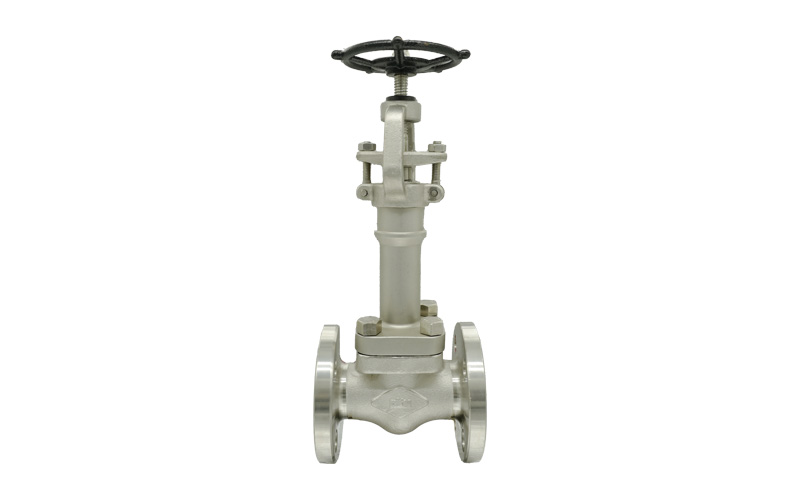

  • EXTENTION
    • MODEL F150GUFX
    • TYPE Extended Globe
    • CLASS ANSI 150
    • Material A182-F304
    • CONN. Flanged
    • FEATURE Extended bolted bonnet
    • Size3/8"(10mm) ~ 2"(50mm)

    Forged 150# Stainless Steel Globe Valve

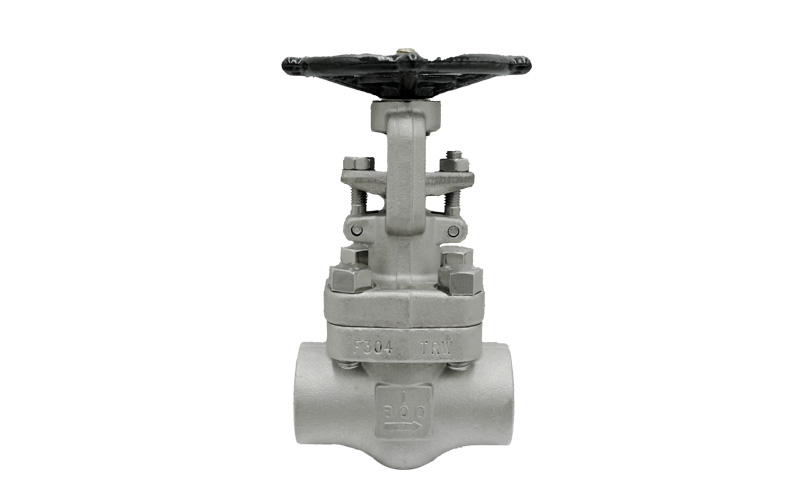

  • F304
    DWG
    • MODEL F800 GUW
    • TYPE Globe
    • CLASS API 800
    • Material A182-F304
    • CONN. Socket welding
    • FEATURE Bolted
    • Size3/8"(10mm) ~ 2"(50mm)

    Forged API 800 Stainless Steel Globe Valve

  • F304 / NPT
    DWG
    • MODEL F800GUS(NPT)
    • TYPE Globe
    • CLASS API 800
    • Material A182-F304
    • CONN. Screwed
    • FEATURE Bolted
    • Size3/8"(10mm) ~ 2"(50mm)

    Forged API 800 Stainless Steel Globe Valve

  • A105 / 150#
    DWG
    • MODEL F150GCF
    • TYPE Globe
    • CLASS ANSI 150
    • Material A105
    • CONN. Flanged
    • FEATURE Bolted
    • Size3/8"(10mm) ~ 2"(50mm)

    Forged 150# Carbon Steel Globe Valve

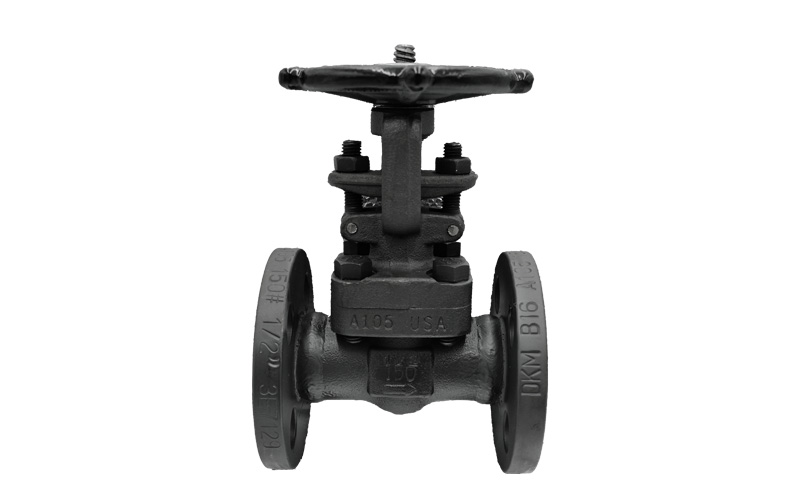

  • A105 / 10K
    DWG
    • MODEL F10GCF
    • TYPE Globe
    • CLASS JIS 10K
    • Material A105
    • CONN. Flanged
    • FEATURE Bolted
    • Size3/8"(10mm) ~ 2"(50mm)

    Forged 10K Carbon Steel Globe Valve

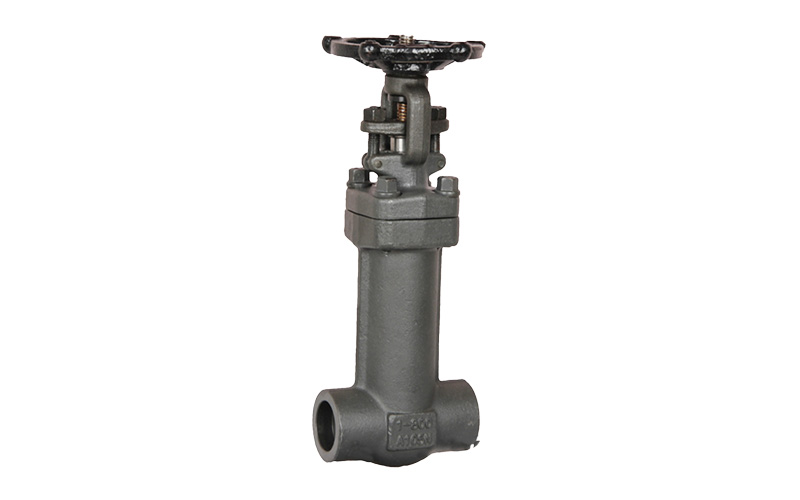

  • Bellows
    • MODEL F150GCW-BL
    • TYPE Bellows Globe
    • CLASS API 800
    • Material A105
    • CONN. Socket welding
    • FEATURE Socket welding / Bolted
    • Size3/8"(10mm) ~ 2"(50mm)

    Forged API 800 Carbon Steel Bellows Globe Valve

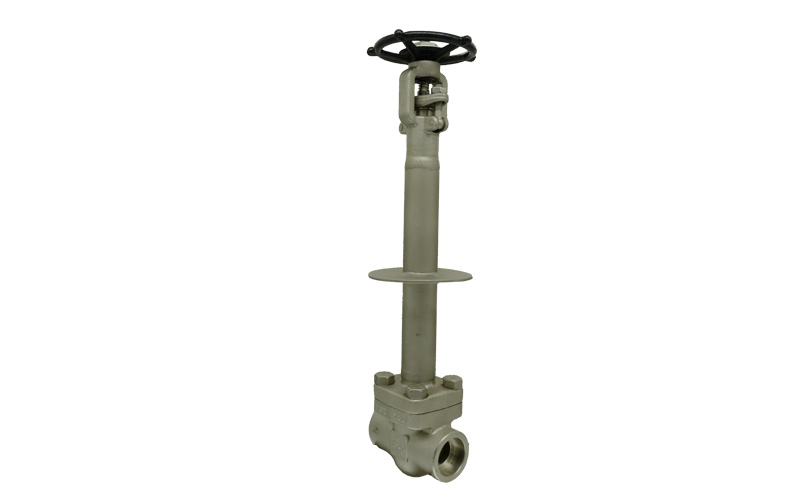

  • Cryogenic
    • MODEL F800GUW-CR
    • TYPE Cryogenic Globe
    • CLASS API 800
    • Material A105
    • CONN. Socket welding
    • FEATURE Cryogenic / Bolted
    • Size3/8"(10mm) ~ 2"(50mm)

    Forged API 800 Cryogenic Carbon Steel Globe Valve
